ADSP-BF706BCPZ-4 - Analog Devices

Description: DSP 16-Bit/32-Bit 400MHz LFCSP88 Analog Devices ADSP-BF706BCPZ-4, 16/32bit Blackfin Digital Signal Processor 400MHz 512 kB ROM 88-Pin LFCSP

Download ADSP-BF706BCPZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF706BCPZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

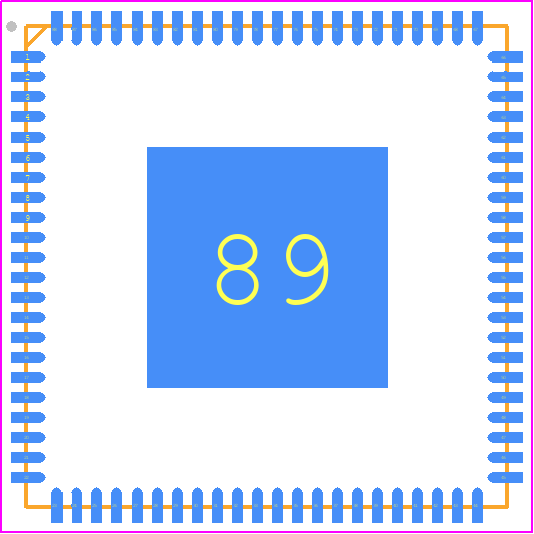

ADSP-BF706BCPZ-4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 12 mm × 12 mm LFCSP_VQ (QFN)
click to zoom
3D Models
ADSP-BF706BCPZ-4 - Analog Devices - 3D model - Quad Flat No-Lead - 12 mm × 12 mm LFCSP_VQ (QFN)
click to zoom

ADSP-BF706BCPZ-4 Details

  • Manufacturer Part Number:

    ADSP-BF706BCPZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    14

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    60 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    88

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC88,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF706BCPZ-4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD_INT and VDD_DDR simultaneously, followed by VDD_CORE and VDD_PLL. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance involves understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache, and optimizing memory access patterns. Consult the ADSP-BF706BCPZ-4's software development kit (SDK) and application notes for guidance.
  • The ADSP-BF706BCPZ-4 has a maximum junction temperature of 125°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB layout. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-BF706BCPZ-4's EMC application notes and relevant industry standards (e.g., IEC 61000-4-2) for guidance.
  • When using the ADSP-BF706BCPZ-4 in a harsh environment, consider the operating temperature range, humidity, and vibration. Ensure the processor is properly packaged and sealed, and that the PCB is designed to withstand the environmental stresses. Consult the datasheet and relevant industry standards (e.g., IEC 60068-2-1) for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-BF706BCPZ-4 Overview

Use the download button to access the ADSP-BF706BCPZ-4 schematic symbol, PCB footprint, and 3D model.
