ADSP-BF706KCPZ-4 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC Low Cost sngl core BF+ w/larg int'l mem

Download ADSP-BF706KCPZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF706KCPZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

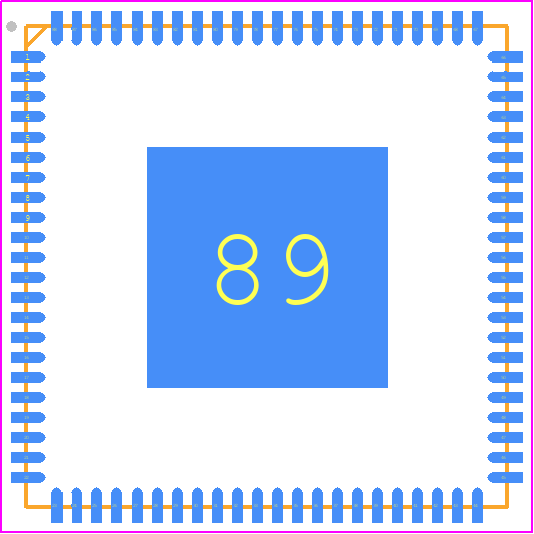

ADSP-BF706KCPZ-4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_VQ]
click to zoom
3D Models
ADSP-BF706KCPZ-4 - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_VQ]
click to zoom

ADSP-BF706KCPZ-4 Details

  • Manufacturer Part Number:

    ADSP-BF706KCPZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    14

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    60 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    88

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC88,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF706KCPZ-4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD_INT and VDD_DDR simultaneously, followed by VDD_CORE, and then the clock signal. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • To optimize performance, consider the following: 1) Optimize the clock frequency and voltage for the specific application, 2) Use the cache and DMA efficiently, 3) Minimize memory accesses, 4) Use the built-in accelerators and peripherals, and 5) Consider using the Blackfin Compiler's optimization options.
  • The ADSP-BF706KCPZ-4 has a maximum junction temperature of 125°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider using thermal interface materials and follow the recommended PCB design guidelines.
  • To ensure EMC, follow these guidelines: 1) Use a shielded enclosure, 2) Keep the PCB layout clean and organized, 3) Use decoupling capacitors, 4) Avoid routing sensitive signals near the processor, and 5) Follow the recommended EMI filtering and shielding guidelines.
  • For harsh environments, consider the following: 1) Temperature range: -40°C to 85°C, 2) Humidity: 5% to 95% RH, 3) Vibration: 10G peak, 4) Shock: 100G peak, and 5) ESD protection: follow the recommended handling and storage guidelines.
