ADSP-CM402CSWZ-EF - Analog Devices

Description: Analog Devices ADSP-CM402CSWZ-EF, 32bit ADSP-CM402F Mixed-Signal Control Processor 150MHz 512 kB Flash 120-Pin LQFP

Download ADSP-CM402CSWZ-EF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-CM402CSWZ-EF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

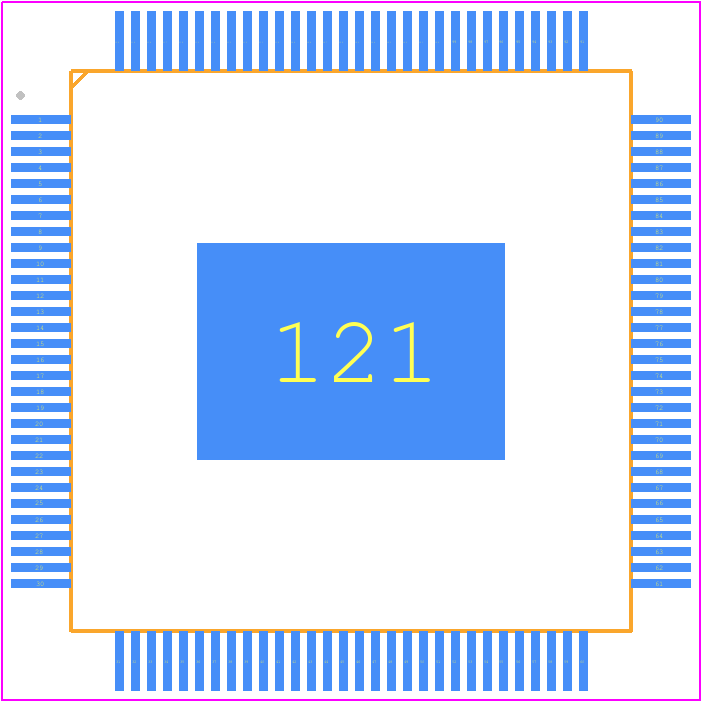

ADSP-CM402CSWZ-EF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP120_1
click to zoom
3D Models
ADSP-CM402CSWZ-EF - Analog Devices - 3D model - Quad Flat Packages - LQFP120_1
click to zoom

ADSP-CM402CSWZ-EF Details

  • Manufacturer Part Number:

    ADSP-CM402CSWZ-EF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HLFQFP, HQFP120,.63SQ,16

  • Pin Count:

    120

  • Manufacturer Package Code:

    SW-120-3

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    5

  • Barrel Shifter:

    NO

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    60 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    17

  • Number of External Interrupts:

    6

  • Number of Serial I/Os:

    5

  • Number of Terminals:

    120

  • Number of Timers:

    11

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER

ADSP-CM402CSWZ-EF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guidelines in the ADSP-CM402CSWZ-EF Hardware Design Guide (UG-1139) and the ADSP-CM402CSWZ-EF Thermal Management Application Note (AN-1359). These resources provide detailed information on PCB layout, thermal design, and heat sink selection to ensure optimal performance and reliability.
  • The ADSP-CM402CSWZ-EF has various power-saving features such as dynamic voltage and frequency scaling, clock gating, and power domains. To optimize power consumption, engineers can use the ADSP-CM402CSWZ-EF's power management unit (PMU) to configure the voltage and frequency of the processor, as well as enable/disable power domains and clock gating. Additionally, Analog Devices provides a Power Estimation Tool (PET) to help estimate power consumption based on the application's requirements.
  • The ADSP-CM402CSWZ-EF has an industrial temperature range of -40°C to 85°C, and an extended temperature range of -55°C to 125°C for certain applications. However, the maximum operating temperature range may vary depending on the specific use case and environmental conditions. Engineers should consult the datasheet and relevant application notes for more information.
  • To ensure EMC and EMI compliance, engineers should follow the guidelines outlined in the ADSP-CM402CSWZ-EF EMC and EMI Compliance Application Note (AN-1360). This includes proper PCB layout, component selection, and shielding, as well as using the ADSP-CM402CSWZ-EF's built-in EMI reduction features such as spread spectrum clocking and clock jitter reduction.
  • The recommended software development environment for the ADSP-CM402CSWZ-EF is the CrossCore Embedded Studio (CCES) development environment, which provides a comprehensive set of tools for developing, debugging, and optimizing code for the ADSP-CM402CSWZ-EF. CCES includes a compiler, assembler, linker, and debugger, as well as support for various operating systems and middleware.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-CM402CSWZ-EF Overview

Use the download button to access the ADSP-CM402CSWZ-EF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
