ADSP-CM403CSWZ-FF - Analog Devices

Description: Analog Devices ADSP-CM403CSWZ-FF, 32bit ADSP-CM403F Mixed-Signal Control Processor 100MHz 256 kB Flash 120-Pin LQFP

Download ADSP-CM403CSWZ-FF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-CM403CSWZ-FF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

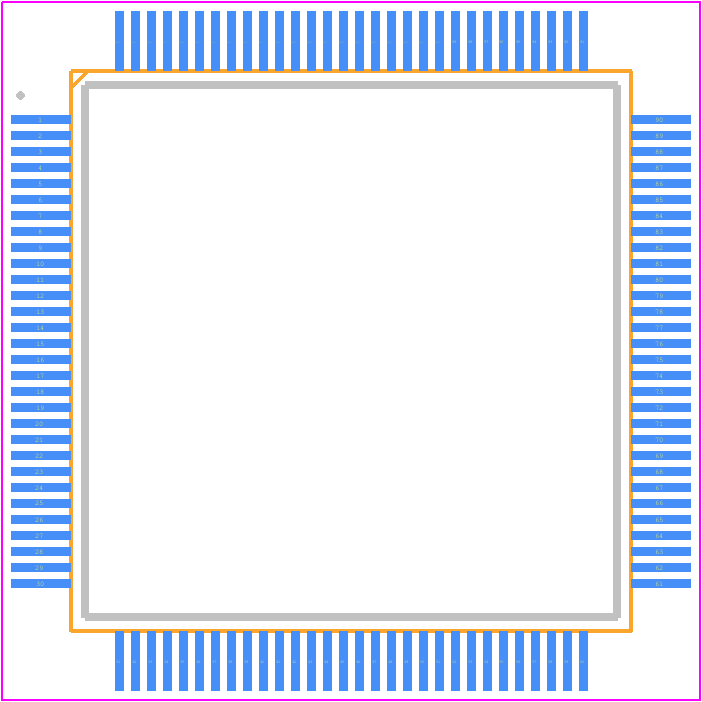

ADSP-CM403CSWZ-FF - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 120 LQFP
click to zoom
3D Models
ADSP-CM403CSWZ-FF - Analog Devices - 3D model - Quad Flat Packages - 120 LQFP
click to zoom

ADSP-CM403CSWZ-FF Details

  • Manufacturer Part Number:

    ADSP-CM403CSWZ-FF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LQFP-120

  • Pin Count:

    120

  • Manufacturer Package Code:

    SW-120-3

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    5

  • Barrel Shifter:

    NO

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    60 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    17

  • Number of External Interrupts:

    6

  • Number of Serial I/Os:

    5

  • Number of Terminals:

    120

  • Number of Timers:

    11

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, CONTROLLER

ADSP-CM403CSWZ-FF Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-CM403 evaluation board documentation, which can be used as a starting point. Additionally, thermal management is critical, and a heat sink or thermal interface material may be required to maintain a safe operating temperature.
  • Power consumption can be optimized by using the device's power-saving features, such as dynamic voltage and frequency scaling, and by optimizing the system's clocking and memory usage. Additionally, using the device's low-power modes, such as sleep or standby, can also help reduce power consumption.
  • Analog Devices recommends using a combination of ceramic and electrolytic capacitors for decoupling, with a total capacitance of at least 10uF per power pin. The capacitors should be placed as close as possible to the power pins, and the layout should be designed to minimize inductance and noise.
  • Reliable boot-up and firmware loading can be ensured by following the recommended boot-up sequence and firmware loading procedures outlined in the ADSP-CM403 documentation. Additionally, using a reliable boot loader and ensuring that the boot memory is properly configured can also help ensure reliable boot-up and firmware loading.
  • The ADSP-CM403 is rated for operation up to 125°C, but high-temperature operation can affect the device's performance and reliability. Engineers should consider the device's thermal characteristics, such as thermal resistance and junction temperature, and ensure that the system is designed to maintain a safe operating temperature.
