ADSP-SC570KSWZ-4 - Analog Devices

Description: Single-core SHARC+ (w/384KB L1), arm® Cortex-A5, 1MB Shared L2, 10/100 Ethernet, 176-LQFP

Download ADSP-SC570KSWZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC570KSWZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

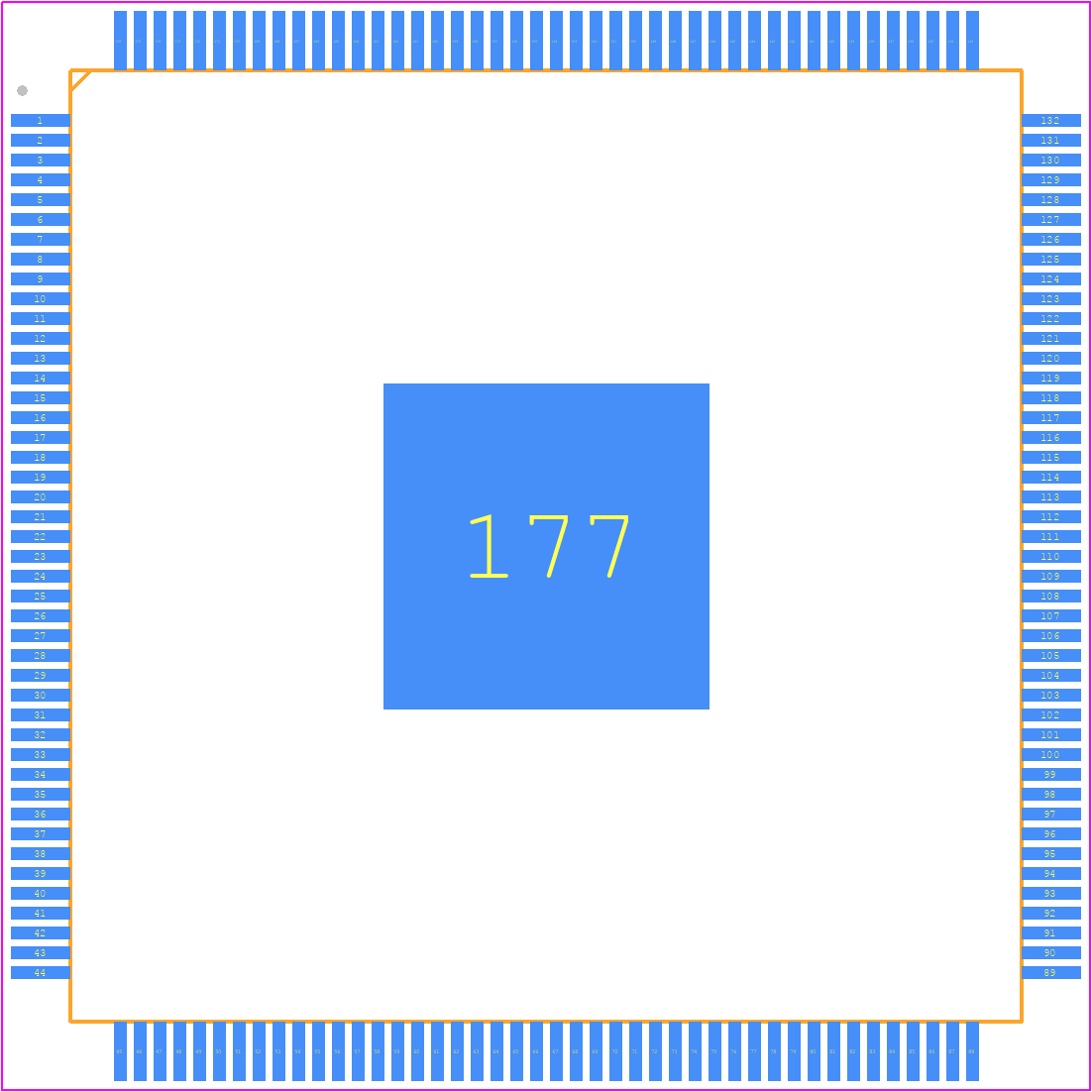

ADSP-SC570KSWZ-4 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2024
click to zoom
3D Models
ADSP-SC570KSWZ-4 - Analog Devices - 3D model - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2024
click to zoom

ADSP-SC570KSWZ-4 Details

  • Manufacturer Part Number:

    ADSP-SC570KSWZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    176

  • Manufacturer Package Code:

    SW-176-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    33 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G176

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-SC570KSWZ-4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADSP-SC570KSWZ-4 is -40°C to 125°C, but it depends on the specific application and environmental conditions. It's recommended to check the thermal design and heat sink requirements to ensure reliable operation.
  • The ADSP-SC570KSWZ-4 can be programmed using the Keil µVision Integrated Development Environment (IDE) or the Analog Devices' own development environment, ADI's SCIO SDK. You can also use third-party development tools and software frameworks like Linux, Android, or proprietary RTOS.
  • The power consumption of the ADSP-SC570KSWZ-4 varies depending on the operating frequency, voltage, and application. According to the datasheet, the typical power consumption is around 450 mW at 1.3 V and 500 MHz. However, it's recommended to perform power analysis and optimization for specific use cases.
  • Yes, the ADSP-SC570KSWZ-4 has built-in cryptographic accelerators, including AES, SHA-256, and RSA. These accelerators can be used to implement cryptographic algorithms and protocols, such as SSL/TLS, IPsec, and digital signatures. However, ensure that your application complies with relevant security standards and regulations.
  • The ADSP-SC570KSWZ-4 has an external memory interface that supports various memory types, including DDR3, DDR4, and QSPI flash. You can use the device's memory interface controller to configure and manage external memory. Consult the datasheet and application notes for specific interface and memory configuration requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-SC570KSWZ-4 Overview

Use the download button to access the ADSP-SC570KSWZ-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors
