ADSP-SC573KBCZ-5 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC ARM, 2x SHARC, DDR, BGA Pkg 500 MHz

Download ADSP-SC573KBCZ-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC573KBCZ-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

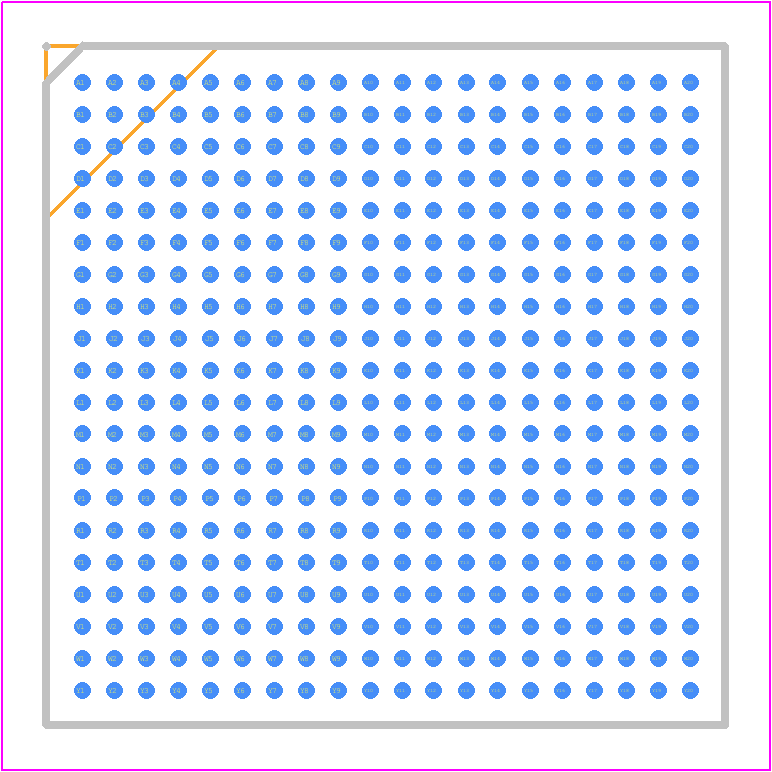

ADSP-SC573KBCZ-5 - Analog Devices PCB footprint - BGA - BGA - 400-Ball CSP_BGA
click to zoom
3D Models
ADSP-SC573KBCZ-5 - Analog Devices - 3D model - BGA - 400-Ball CSP_BGA
click to zoom

ADSP-SC573KBCZ-5 Details

  • Manufacturer Part Number:

    ADSP-SC573KBCZ-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    400

  • Manufacturer Package Code:

    BC-400-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2018-02-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    33 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-SC573KBCZ-5 Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-SC573 Hardware Reference Manual, which includes recommendations for thermal management, power supply decoupling, and signal routing to ensure optimal performance and reliability.
  • Analog Devices provides a range of software development tools, including the CrossCore Embedded Studio (CCES) and the ADSP-SC573 Software Framework, which include optimization guides, example code, and performance analysis tools to help engineers optimize the processor for their specific application.
  • The ADSP-SC573KBCZ-5 is rated for operation from -40°C to +125°C, but the maximum operating temperature range may vary depending on the specific application and use case. Engineers should consult the datasheet and relevant application notes for more information.
  • Analog Devices provides guidelines and recommendations for EMC and EMI compliance in the ADSP-SC573 Hardware Reference Manual, including advice on PCB layout, shielding, and filtering to minimize electromagnetic emissions and susceptibility.
  • The power consumption of the ADSP-SC573KBCZ-5 varies depending on the operating frequency, voltage, and application. Analog Devices provides power consumption estimates and optimization guidelines in the datasheet and ADSP-SC573 Power Management Guide, including advice on dynamic voltage and frequency scaling, power gating, and low-power modes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-SC573KBCZ-5 Overview

Use the download button to access the ADSP-SC573KBCZ-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
