ADSP-SC584BBCZ-3A - Analog Devices

ADSP-SC584BBCZ-3A Details

• Manufacturer Part Number:

  ADSP-SC584BBCZ-3A

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

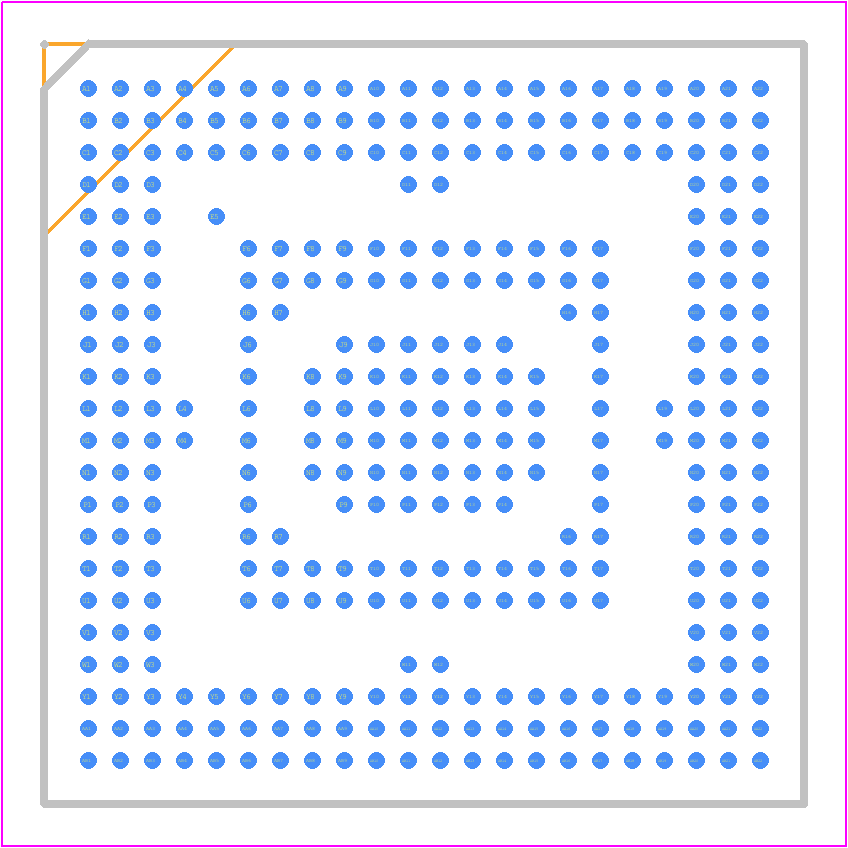

• Package Description:

  CSPBGA-349

• Pin Count:

  349

• Manufacturer Package Code:

  BC-349-1

• Country Of Origin:

  South Korea

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Bus Compatibility:

  SPI; UART

• Clock Frequency-Max:

  500 MHz

• JESD-30 Code:

  S-PBGA-B349

• Length:

  19 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  349

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA529,23X23,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.5 mm

• Supply Voltage-Max:

  1.15 V

• Supply Voltage-Min:

  1.05 V

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm

• uPs/uCs/Peripheral ICs Type:

  DSP PERIPHERAL, FLOATING POINT PROCESSOR
