ADSP-SC594BBPZ10 - Analog Devices

Description: Up to 1 GHz Dual-SHARC+? DSP w/ Integrated Arm? Cortex?-A5

Download ADSP-SC594BBPZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC594BBPZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

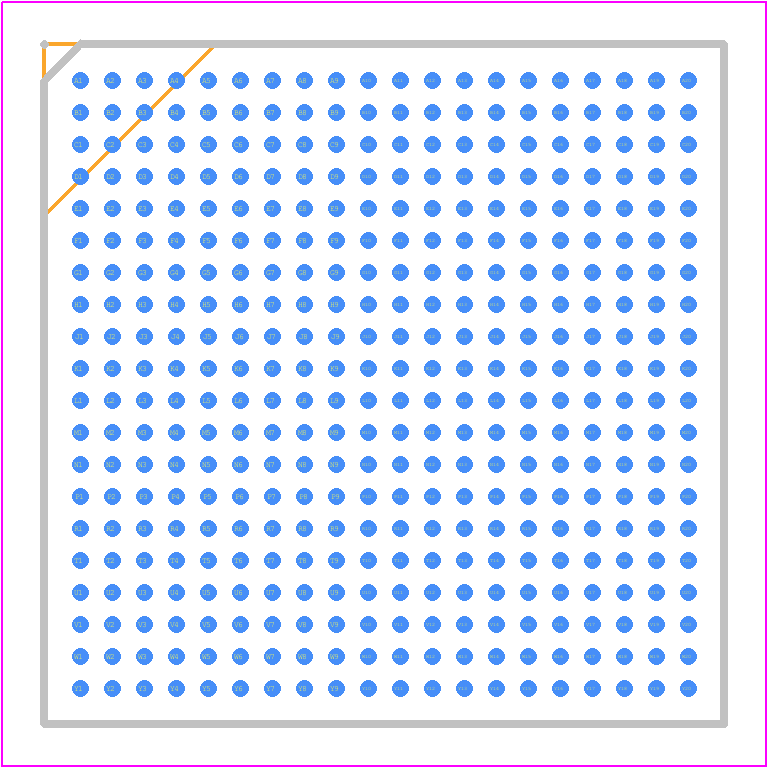

ADSP-SC594BBPZ10 - Analog Devices PCB footprint - BGA - BGA - BGA THERM ENH W/HEATSINK
click to zoom
3D Models
ADSP-SC594BBPZ10 - Analog Devices - 3D model - BGA - BGA THERM ENH W/HEATSINK
click to zoom

ADSP-SC594BBPZ10 Details

  • Manufacturer Part Number:

    ADSP-SC594BBPZ10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-400

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Barrel Shifter:

    YES

  • Bit Size:

    64

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    1000 MHz

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    6

  • Number of Terminals:

    400

  • Number of Timers:

    16

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • RAM (words):

    2097152

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1933 mA

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, MIXED

ADSP-SC594BBPZ10 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management strategy in the ADSP-SC594 Hardware Design Guide (UG-1469) and the ADSP-SC594 Thermal Design Guide (UG-1470). These guides provide detailed information on PCB layout, thermal management, and heat sink design to ensure optimal performance and reliability.
  • Optimizing the performance of the ADSP-SC594BBPZ10 requires a deep understanding of the device's architecture, peripherals, and software tools. Analog Devices provides a range of resources, including the ADSP-SC594 Processor Manual (UG-1459), the ADSP-SC594 Software Framework, and the CrossCore Embedded Studio (CCES) development environment, to help engineers optimize the device's performance for their specific application.
  • The ADSP-SC594BBPZ10's FPU is a single-precision FPU that supports IEEE 754-2008 floating-point arithmetic. While it provides high-performance floating-point processing, it has some limitations, such as limited support for denormal numbers and no support for double-precision floating-point arithmetic. Engineers should consult the ADSP-SC594 Processor Manual (UG-1459) for more information on the FPU's limitations and how to work around them.
  • Ensuring the reliability and fault tolerance of the ADSP-SC594BBPZ10 requires a comprehensive approach that includes hardware and software design considerations, such as error correction coding, checksums, and watchdog timers. Analog Devices provides guidelines and recommendations for designing reliable and fault-tolerant systems in the ADSP-SC594 Reliability and Fault Tolerance Guide (UG-1471).
  • The ADSP-SC594BBPZ10 has a range of security features, including a secure boot mechanism, cryptographic accelerators, and a secure firmware update mechanism. Analog Devices provides guidelines and recommendations for implementing secure boot and secure firmware updates in the ADSP-SC594 Security Guide (UG-1472) and the ADSP-SC594 Secure Boot and Firmware Update Application Note (AN-1399).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-SC594BBPZ10 Overview

Use the download button to access the ADSP-SC594BBPZ10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
