ADSP-SC594KBPZ10 - Analog Devices

Description: Up to 1 GHz Dual-SHARC+? DSP w/ Integrated Arm? Cortex?-A5

Download ADSP-SC594KBPZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC594KBPZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

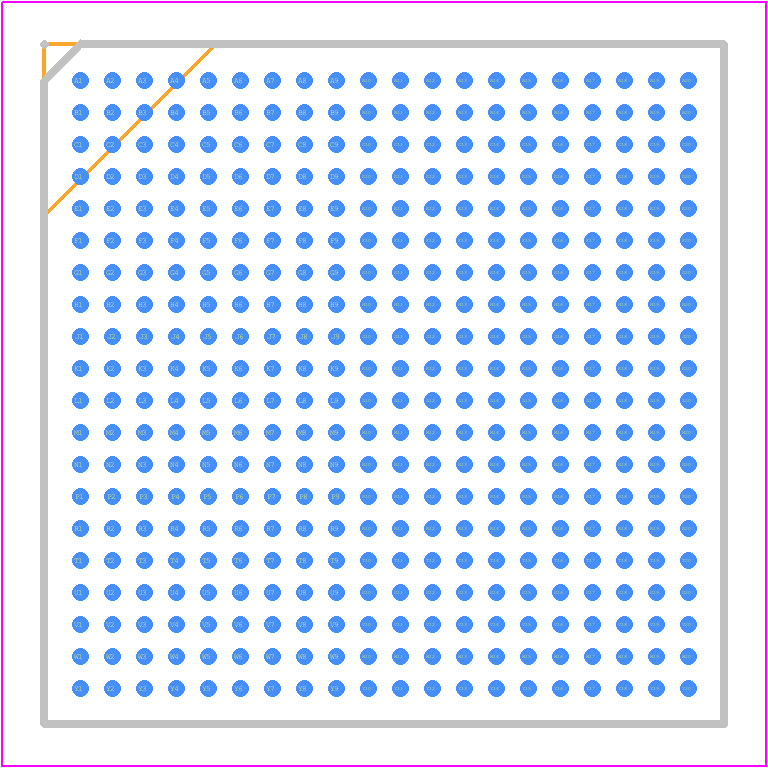

ADSP-SC594KBPZ10 - Analog Devices PCB footprint - BGA - BGA - ADSP-SC594KBPZ10
click to zoom
3D Models
ADSP-SC594KBPZ10 - Analog Devices - 3D model - BGA - ADSP-SC594KBPZ10
click to zoom

ADSP-SC594KBPZ10 Details

  • Manufacturer Part Number:

    ADSP-SC594KBPZ10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-400

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    2MB Large on-chip Level 2 (L2) SRAM Available

  • Barrel Shifter:

    YES

  • Bit Size:

    64

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    30 MHz

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    6

  • Number of Terminals:

    400

  • Number of Timers:

    16

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • RAM (words):

    655360

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-SC594KBPZ10 Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-SC594 Hardware Reference Manual, which includes recommendations for thermal management, power supply decoupling, and signal routing to ensure optimal performance and minimize noise.
  • The ADSP-SC594 has a flexible memory architecture, and the optimal configuration depends on the specific application requirements. Engineers can use the Analog Devices' VisualDSP++ development environment to analyze and optimize memory usage, and also refer to the ADSP-SC594 Memory Interface Manual for detailed guidelines.
  • Analog Devices provides a range of debugging tools, including the VisualDSP++ debugger, the ADSP-SC594 Emulator, and the ICE-1000/2000 Emulator. Engineers can also use the chip's built-in debug features, such as the Debug Interface and the System Debug Module, to troubleshoot issues. Additionally, Analog Devices offers a range of application notes and FAQs on debugging and troubleshooting.
  • Analog Devices provides guidelines for EMC and EMI reduction in the ADSP-SC594 Hardware Reference Manual, including recommendations for PCB layout, shielding, and filtering. Engineers can also refer to the IEC 61000-4 standard for EMC testing and compliance.
  • The ADSP-SC594 datasheet provides detailed power consumption and thermal characteristics, including power dissipation, thermal resistance, and junction temperature. Engineers can optimize power consumption by using the chip's power management features, such as dynamic voltage and frequency scaling, and also by optimizing their code and algorithm implementation.
