ADSP-TS101SAB1-100 - Analog Devices

Description: IC DSP CTRLR 128BIT BUS 625BGA

Download ADSP-TS101SAB1-100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-TS101SAB1-100 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

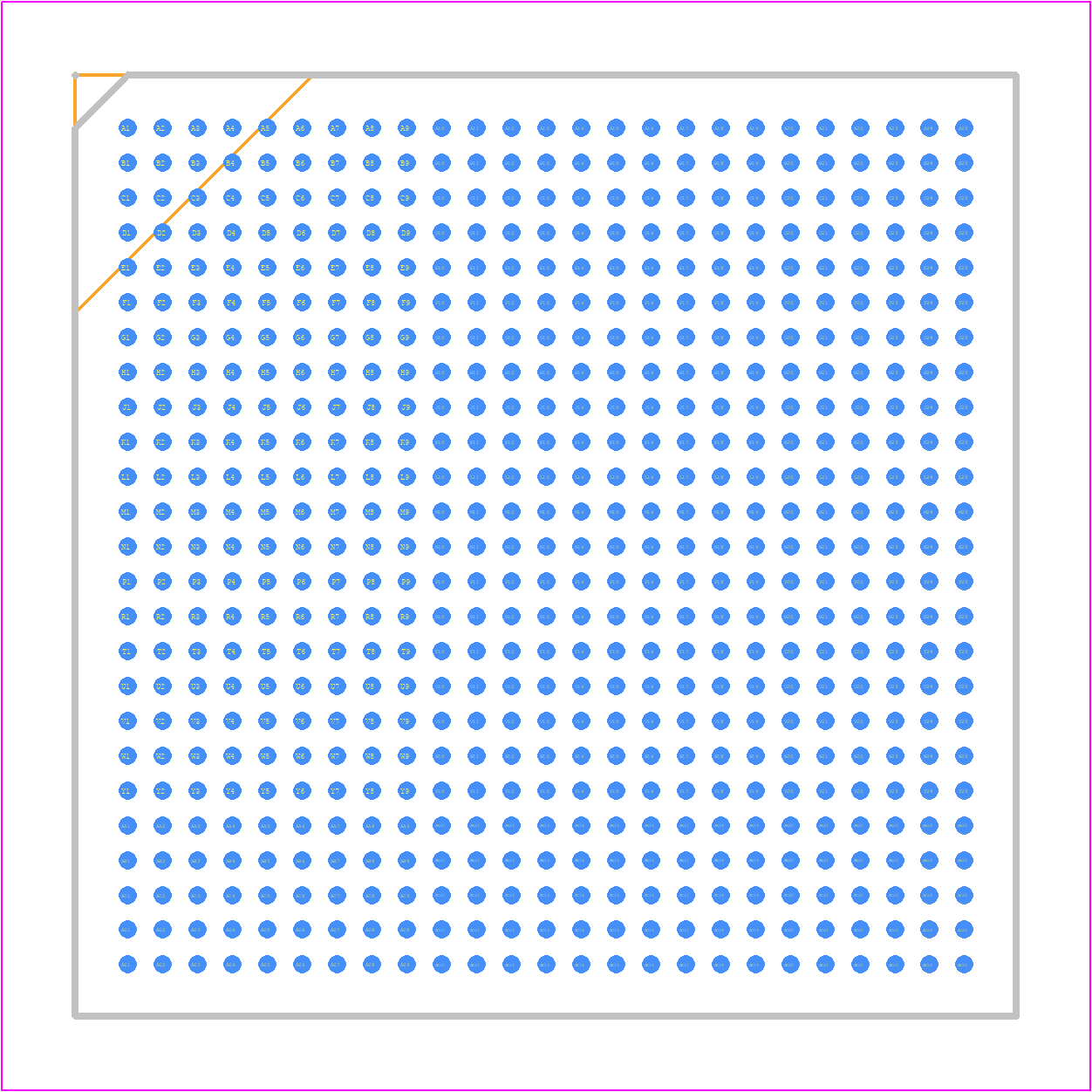

ADSP-TS101SAB1-100 - Analog Devices PCB footprint - BGA - BGA - ADSP-TS101SAB1-100
click to zoom
3D Models
ADSP-TS101SAB1-100 - Analog Devices - 3D model - BGA - ADSP-TS101SAB1-100
click to zoom

ADSP-TS101SAB1-100 Details

  • Manufacturer Part Number:

    ADSP-TS101SAB1-100

  • Source Url Status Check Date:

    2013-05-01 14:56:49.125

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    27 X 27 MM, PLASTIC, MS-034, BGA-625

  • Pin Count:

    625

  • Manufacturer Package Code:

    B-625

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    32

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    100 MHz

  • External Data Bus Width:

    64

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B625

  • JESD-609 Code:

    e0

  • Length:

    27 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    625

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA625,25X25,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • RAM (words):

    196608

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD SILVER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-TS101SAB1-100 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDA, and then VDDIO. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance for low-power applications, use the Dynamic Voltage and Frequency Scaling (DVFS) feature, which allows you to adjust the clock frequency and voltage based on the system's workload. Additionally, use the power gating feature to turn off unused peripherals and reduce power consumption.
  • The maximum operating temperature range for the ADSP-TS101SAB1-100 is -40°C to 125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • To ensure EMC, follow proper PCB design guidelines, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, use the device's built-in electromagnetic interference (EMI) filters and follow the recommended layout and routing guidelines.
  • The recommended clocking scheme is to use a single clock source, such as a crystal oscillator or a clock generator, to drive the device's clock inputs. This ensures that all clock domains are synchronized and reduces the risk of clock skew and jitter.
