ADSP-TS201SABP-050 - Analog Devices

ADSP-TS201SABP-050 Details

• Manufacturer Part Number:

  ADSP-TS201SABP-050

• Source Url Status Check Date:

  2013-05-01 14:56:49.13

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

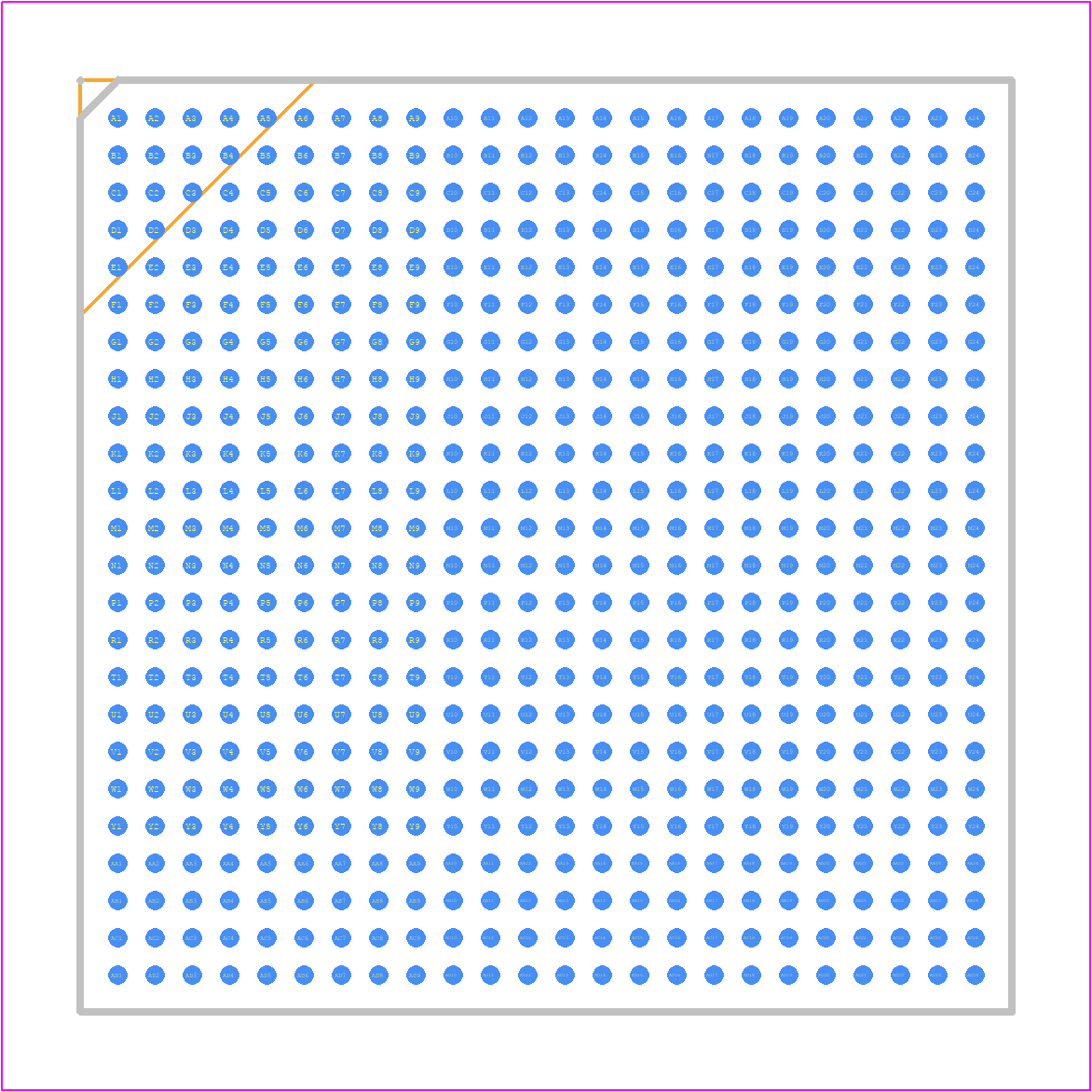

• Part Package Code:

  BGA

• Package Description:

  25 X 25 MM, MS-034, BGA-576

• Pin Count:

  576

• Manufacturer Package Code:

  BP-576

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES 2.5V SUPPLY

• Address Bus Width:

  32

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  125 MHz

• External Data Bus Width:

  64

• Format:

  FLOATING POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B576

• JESD-609 Code:

  e0

• Length:

  25 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  576

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA576,24X24,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  225

• Qualification Status:

  Not Qualified

• RAM (words):

  786432

• Seated Height-Max:

  3.1 mm

• Supply Voltage-Max:

  1.1 V

• Supply Voltage-Min:

  1 V

• Supply Voltage-Nom:

  1.05 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD SILVER

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  25 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
