ADSP21065LSS240-EP - Analog Devices

ADSP21065LSS240-EP Details

• Manufacturer Part Number:

  ADSP21065LSS240-EP

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active Unconfirmed

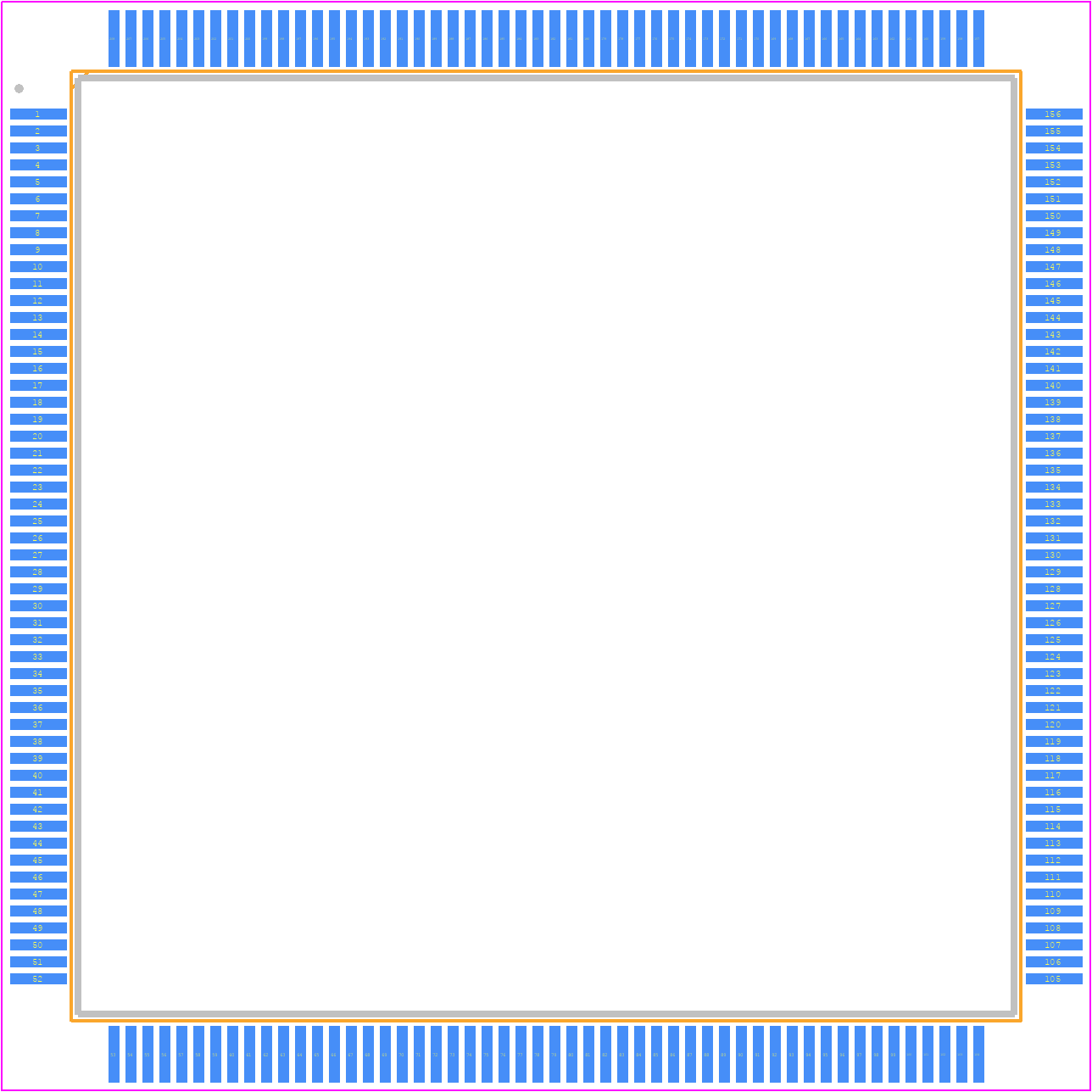

• Package Description:

  MQFP-208

• Pin Count:

  208

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Analog Devices Inc

• Has ADC:

  NO

• Additional Feature:

  32-BIT FIXED-POINT IS ALSO AVAILABLE

• Address Bus Width:

  24

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G208

• Length:

  28 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  10

• Number of External Interrupts:

  3

• Number of I/O Lines:

  12

• Number of Terminals:

  208

• Number of Timers:

  2

• On Chip Data RAM Width:

  1

• Operating Temperature-Max:

  110 °C

• Operating Temperature-Min:

  -55 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP208,1.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• RAM (bytes):

  557056

• RAM (words):

  278528

• Seated Height-Max:

  4.1 mm

• Speed:

  60 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.13 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, CONTROLLER
