ADT1-1WT+ - Mini-Circuits

Description: RF Transformer

Download ADT1-1WT+ Model

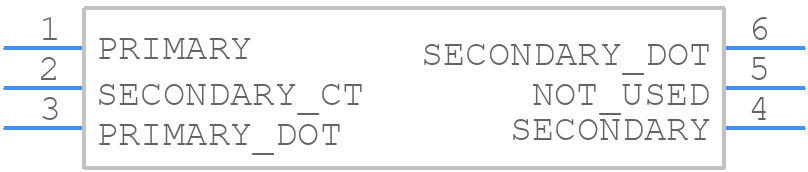

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADT1-1WT+ - Mini-Circuits PCB footprint - Other - Other - ADT1-1WT+-2
click to zoom
3D Models
ADT1-1WT+ - Mini-Circuits  - 3D model - Other - ADT1-1WT+-2
click to zoom

ADT1-1WT+ Details

  • Manufacturer Part Number:

    ADT1-1WT+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 1, HEIGHT DIM INCLUDES TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    800 MHz

  • Cut-off Frequency-Min:

    0.4 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    800000 kHz

  • Operating Frequency-Min:

    400 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Power Rating:

    0.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    5.59 mm

ADT1-1WT+ Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to use a solid ground plane, keep the signal traces short and away from noise sources, and use a common ground point for the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADT1-1WT+ requires a bias voltage of +5V to +15V. Ensure the bias voltage is stable and noise-free, and use a voltage regulator or a low-dropout regulator to minimize noise and ripple.
  • The ADT1-1WT+ can handle up to 1W of input power. Exceeding this limit may cause damage to the device. Ensure the input power is within the specified range to prevent damage.
  • Common issues can be caused by improper biasing, poor PCB layout, or inadequate decoupling. Check the bias voltage, PCB layout, and decoupling capacitors. Use a spectrum analyzer to identify any unwanted oscillations or spurious signals.
  • The ADT1-1WT+ is specified to operate from -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT1-1WT+ Overview

Use the download button to access the ADT1-1WT+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
