ADT1-6T+ footprint, schematic symbol and 3D model by Mini-Circuits

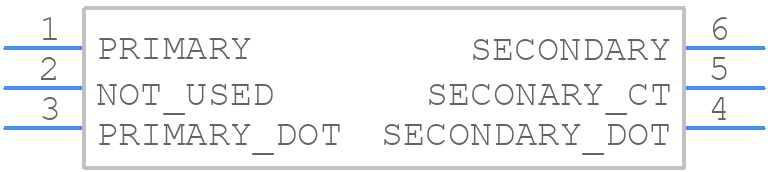

Symbol

click to zoom

PCB Footprints

ADT1-6T+ - Mini-Circuits PCB footprint - Other - Other - ADT1-6T+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADT1-6T+
Part Number ADT1-6T+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - ADT1-6T+-2
Released Date May 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADT1-6T+ Details

Manufacturer Part Number:
ADT1-6T+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Additional Feature:
OHMS RATIO IS 1, HEIGHT DIMENSION INCLUDES TERMINALS ALSO
Application:
SIGNAL
Cut-off Frequency-Max:
125 MHz
Cut-off Frequency-Min:
0.03 MHz
DC Unbalance Current-Max:
30 mA
Height:
5.23 mm
Insertion Loss:
3 dB
Length:
7.87 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
1
Operating Frequency-Max:
125000 kHz
Operating Frequency-Min:
30 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TAPE & REEL
Power Rating:
0.5 W
Primary Impedance:
50 OHMS
Secondary Impedance:
50 OHMS
Surface Mount:
YES
Transformer Type:
RF TRANSFORMER
Turns Ratio (Np:Ns):
1:1
Width:
5.59 mm

ADT1-6T+ Frequently Asked Questions (FAQs)

A multi-layer PCB with a solid ground plane and a low-impedance path to the ground is recommended. The device should be placed close to the ground plane, and the input and output tracks should be kept short and away from noise sources.
The device requires a positive voltage supply (Vcc) and a negative voltage supply (Vee). Ensure that the voltage supplies are well-regulated and decoupled, and that the device is biased according to the recommended operating conditions.
The ADT1-6T+ can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink to dissipate heat. Operating the device within the recommended temperature range and minimizing power consumption can also help minimize thermal drift.
The device has a 50Ω input and output impedance. Ensure that the input and output tracks are impedance-matched to 50Ω to minimize reflections and ensure optimal power transfer.

Trust Checks

Expert Contribution

System Verified

Community Approved

ADT1-6T+ Overview

Use the download button to access the ADT1-6T+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADT1-, or try a keyword search, such as RF Transformers
