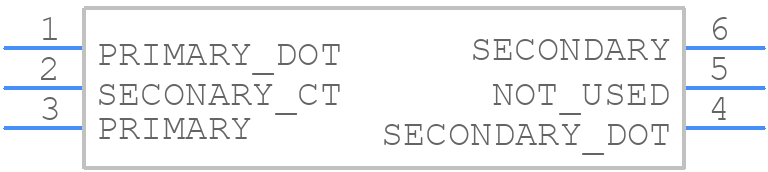

Symbol
ADT1.5-1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT1.5-1+ - Mini-Circuits PCB footprint - Other - Other - ADT1.5-1+-1
click to zoom
3D Models
ADT1.5-1+ - Mini-Circuits - 3D model - Other - ADT1.5-1+-1
click to zoom

ADT1.5-1+ Details

  • Manufacturer Part Number:

    ADT1.5-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT DIM INCLUDES TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    650 MHz

  • Cut-off Frequency-Min:

    0.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    650000 kHz

  • Operating Frequency-Min:

    500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    1 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.59 mm

ADT1.5-1+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections. A 50-ohm microstrip transmission line should be used to connect the device to the antenna.
  • The device requires a bias voltage of 5V ± 0.5V and a bias current of 100mA ± 10mA. A voltage regulator and a low-pass filter can be used to ensure a stable bias voltage. The bias voltage should be applied to the device before applying the RF signal.
  • The maximum power handling of the ADT1.5-1+ is 1W CW (continuous wave). Exceeding this power limit can cause permanent damage to the device. It is recommended to use an attenuator or a limiter to prevent over-powering the device.
  • Common issues with the ADT1.5-1+ include poor impedance matching, incorrect biasing, and overheating. To troubleshoot, check the PCB layout, bias voltage, and temperature of the device. Use a spectrum analyzer and a network analyzer to measure the device's performance and identify any issues.
  • Yes, the ADT1.5-1+ can be used in a push-pull configuration to improve the power handling and linearity of the device. However, this requires careful impedance matching and biasing to ensure optimal performance.
