ADT1.5-122+ - Mini-Circuits

Description: 1:1.5 CORE & WIRE Transformer, 20 - 1200 MHz, 50Ω

Download ADT1.5-122+ Model

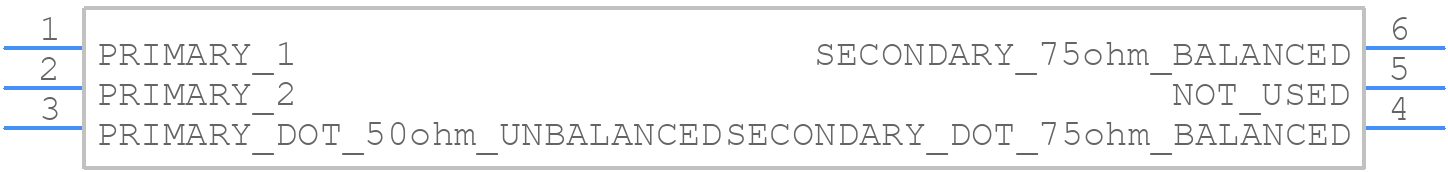

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADT1.5-122+ - Mini-Circuits PCB footprint - Other - Other - CD542_1-2023
click to zoom
3D Models
ADT1.5-122+ - Mini-Circuits  - 3D model - Other - CD542_1-2023
click to zoom

ADT1.5-122+ Details

  • Manufacturer Part Number:

    ADT1.5-122+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT DIM INCLUDES TERMINAL ALSO

  • Cut-off Frequency-Max:

    1200 MHz

  • Cut-off Frequency-Min:

    20 MHz

  • Height:

    2.84 mm

  • Insertion Loss:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.59 mm
