ADT1.5-17+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download ADT1.5-17+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

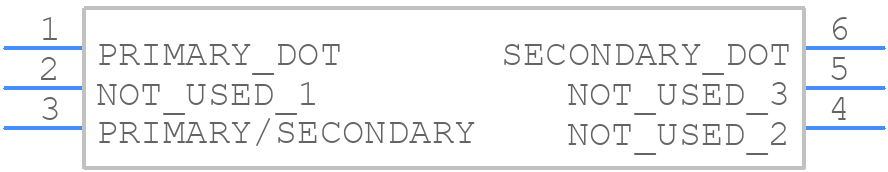

ADT1.5-17+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT1.5-17+ - Mini-Circuits PCB footprint - Other - Other - CD542_2024
click to zoom
3D Models
ADT1.5-17+ - Mini-Circuits - 3D model - Other - CD542_2024
click to zoom

ADT1.5-17+ Details

  • Manufacturer Part Number:

    ADT1.5-17+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    HEIGHT DIM INCLUDES TERMINAL ALSO

  • Cut-off Frequency-Max:

    1700 MHz

  • Cut-off Frequency-Min:

    0.5 MHz

  • Height:

    2.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.59 mm

ADT1.5-17+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a 0.5mm to 1.5mm wide trace and a 0.5mm to 1.5mm gap between the trace and the ground plane. A 4-layer PCB with a solid ground plane is also recommended.
  • The device has a thermal pad on the bottom that should be connected to a solid ground plane or a thermal via to dissipate heat. A thermal interface material (TIM) can also be used to improve heat transfer.
  • The device is rated for operation from -40°C to +85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 70°C to ensure reliability.
  • Yes, the device can be used in a push-pull configuration, but it's essential to ensure that the two devices are properly matched and biased to avoid uneven current sharing and potential oscillations.
  • Mini-Circuits recommends a voltage-controlled current source biasing scheme, with a voltage regulator and a current sense resistor to set the desired bias current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT1.5-17+ Overview

Use the download button to access the ADT1.5-17+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT1., or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
