ADT16-1T+ - Mini-Circuits

Description: Surface Mount RF Transformer 50Ω 1.5 to 160 MHz

Download ADT16-1T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

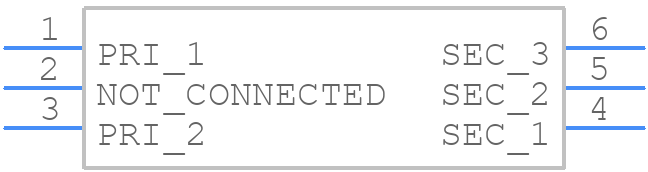

Symbol
ADT16-1T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT16-1T+ - Mini-Circuits PCB footprint - Other - Other - ADT16-1T+-2
click to zoom
3D Models
ADT16-1T+ - Mini-Circuits - 3D model - Other - ADT16-1T+-2
click to zoom

ADT16-1T+ Details

  • Manufacturer Part Number:

    ADT16-1T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    160 MHz

  • Cut-off Frequency-Min:

    1.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    160000 kHz

  • Operating Frequency-Min:

    1500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 13 INCH

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.59 mm

ADT16-1T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The ADT16-1T+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits provides a matching circuit example in their application notes.
  • The ADT16-1T+ can handle up to 1W of continuous power. However, it's essential to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the ADT16-1T+ can be used in a push-pull configuration to achieve higher power output. However, it's crucial to ensure that the devices are properly matched and biased to avoid uneven current sharing and potential damage.
  • The thermal resistance of the ADT16-1T+ is typically around 25°C/W. This value can vary depending on the specific application and PCB design. It's essential to ensure proper heat sinking and thermal management to maintain reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT16-1T+ Overview

Use the download button to access the ADT16-1T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT16, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
