ADT16-6+ footprint, schematic symbol and 3D model by Mini-Circuits

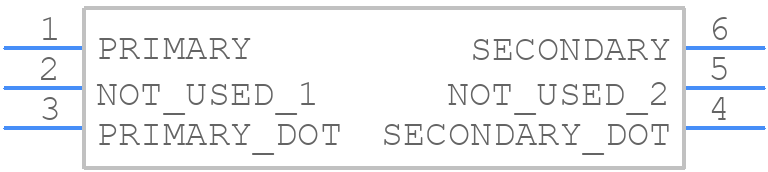

Symbol

click to zoom

PCB Footprints

ADT16-6+ - Mini-Circuits PCB footprint - Other - Other - ADT16-6+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADT16-6+
Part Number ADT16-6+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Transformer
Package Category Other
Footprint Name Other - ADT16-6+-2
Released Date Feb 5, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADT16-6+ Details

Manufacturer Part Number:
ADT16-6+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Cut-off Frequency-Max:
105 MHz
Cut-off Frequency-Min:
0.25 MHz
Height:
4.11 mm
Insertion Loss:
3 dB
JESD-609 Code:
e3
Length:
7.87 mm
Mounting Feature:
SURFACE MOUNT
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TR, 13 INCH
Surface Mount:
YES
Terminal Finish:
Tin (Sn) - with Nickel (Ni) barrier
Transformer Type:
RF TRANSFORMER
Width:
5.59 mm

ADT16-6+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-impedance path to ground for the device's ground pins. A good layout practice is to keep the signal traces short and away from the device's ground pins.
The ADT16-6+ requires a positive bias voltage (Vcc) of 12-15V and a negative bias voltage (Vee) of -12 to -15V. Ensure that the bias voltages are well-regulated and decoupled to prevent noise and oscillations.
The ADT16-6+ can handle input powers up to +10 dBm. Exceeding this limit may cause compression, distortion, or even damage to the device.
Common issues can be troubleshooted by checking the bias voltages, ensuring proper grounding and decoupling, and verifying that the input and output impedances are matched. Also, check for any signs of overheating or physical damage to the device.
Yes, the ADT16-6+ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat, especially in high-power or high-temperature applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

ADT16-6+ Overview

Use the download button to access the ADT16-6+ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADT16, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
