Technical Content
Part Image

ADT2-162T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers 1:2 CORE & WIRE Transformer, 20 - 1600 MHz, 50

Download ADT2-162T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

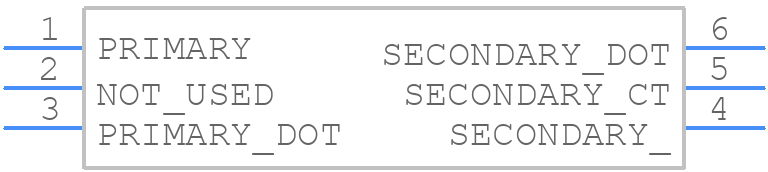

Symbol
ADT2-162T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT2-162T+ - Mini-Circuits PCB footprint - Other - Other - ADT2-162T+-2
click to zoom
3D Models
ADT2-162T+ - Mini-Circuits - 3D model - Other - ADT2-162T+-2
click to zoom

ADT2-162T+ Details

  • Manufacturer Part Number:

    ADT2-162T+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    IMPEDANCE RATIO IS 2:1

  • Cut-off Frequency-Max:

    1600 MHz

  • Cut-off Frequency-Min:

    20 MHz

  • Height:

    4.11 mm

  • Insertion Loss:

    3 dB

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7/13 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.59 mm

ADT2-162T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • To achieve the specified return loss and insertion loss performance, it's crucial to follow the recommended PCB layout, use a high-quality PCB material, and ensure proper soldering and assembly. Additionally, the device should be operated within the specified frequency range and power handling capabilities.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance may degrade at higher temperatures. For optimal performance, it's recommended to operate the device within a temperature range of -20°C to +70°C.
  • While the ADT2-162T+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, it's essential to consult with Mini-Circuits' application engineers to determine the feasibility and potential performance impact of using the device in a non-50 ohm system.
  • The recommended power handling for the ADT2-162T+ is 2 watts. Exceeding this power handling may result in device damage or degradation. It's essential to ensure that the device is operated within the specified power handling capabilities to maintain optimal performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT2-162T+ Overview

Use the download button to access the ADT2-162T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT2-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
