ADT2-1T-1P+ - Mini-Circuits

Description: 1:2 CORE & WIRE Transformer, 8 - 600 MHz, 50Ω

Download ADT2-1T-1P+ Model

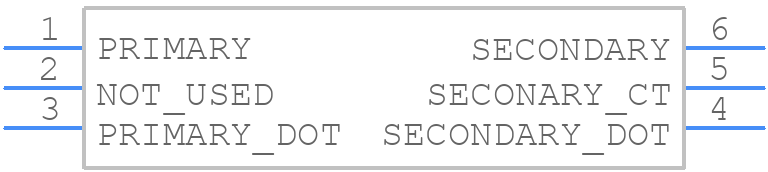

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADT2-1T-1P+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: CD542_2025-2
click to zoom
3D Models
ADT2-1T-1P+ - Mini-Circuits  - 3D model - Other - CASE STYLE: CD542_2025-2
click to zoom

ADT2-1T-1P+ Details

  • Manufacturer Part Number:

    ADT2-1T-1P+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 2

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    600 MHz

  • Cut-off Frequency-Min:

    8 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    3 dB

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    600000 kHz

  • Operating Frequency-Min:

    8000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    1 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1.414

  • Width:

    5.59 mm

ADT2-1T-1P+ Frequently Asked Questions (FAQs)

  • A recommended PCB layout and footprint can be found in the Mini-Circuits application note AN-60-014, which provides guidelines for optimal performance and minimization of parasitic effects.
  • Proper thermal management can be achieved by providing a heat sink or thermal pad under the device, ensuring good airflow, and keeping the operating temperature within the recommended range of -40°C to +85°C.
  • The maximum power handling capability of the ADT2-1T-1P+ is 1 watt. Exceeding this power rating may result in device damage or degradation.
  • Yes, the ADT2-1T-1P+ can be used in switching applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range to avoid overheating or device damage.
  • The recommended biasing scheme for the ADT2-1T-1P+ is a positive voltage supply (Vdd) of 12-15V, with a quiescent current (Idq) of 10-20mA. The specific biasing scheme may vary depending on the application, so it's essential to consult the datasheet and application notes for more information.
