ADT3-1T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download ADT3-1T+ Model

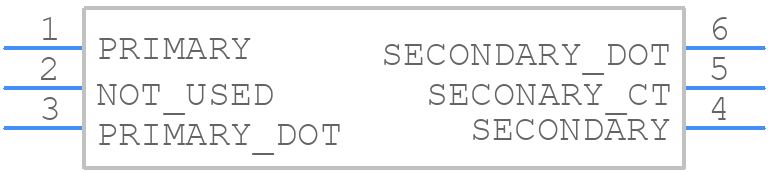

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADT3-1T+ - Mini-Circuits PCB footprint - Other - Other - ADT3-1T+-1
click to zoom
3D Models
ADT3-1T+ - Mini-Circuits  - 3D model - Other - ADT3-1T+-1
click to zoom

ADT3-1T+ Details

  • Manufacturer Part Number:

    ADT3-1T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 3

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    500 MHz

  • Cut-off Frequency-Min:

    1 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500000 kHz

  • Operating Frequency-Min:

    1000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1.732

  • Width:

    5.59 mm

ADT3-1T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • To achieve the specified return loss and insertion loss performance, it's crucial to follow the recommended PCB layout, use a high-quality PCB material, and ensure proper soldering and assembly. Additionally, the device should be operated within the specified frequency range and power handling.
  • The maximum operating temperature range for the ADT3-1T+ is -40°C to +85°C. Operating the device outside this range may affect its performance, reliability, and lifespan.
  • Yes, the ADT3-1T+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a compact size, making it suitable for use in aerospace, defense, and other demanding environments.
  • To prevent damage, handle the ADT3-1T+ by the package body only, avoiding touching the pins or electrical components. Store the devices in their original packaging or in a protective container to prevent mechanical stress and electrostatic discharge (ESD).
