Part Image

ADT3-6T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download ADT3-6T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

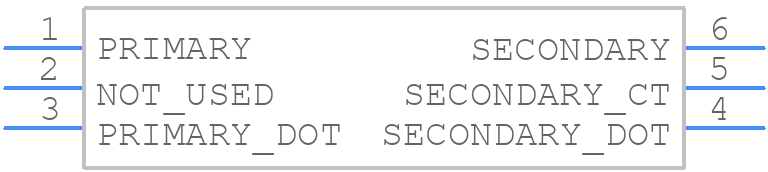

Symbol
ADT3-6T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT3-6T+ - Mini-Circuits PCB footprint - Other - Other - ADT3-6T+-1
click to zoom
3D Models
ADT3-6T+ - Mini-Circuits - 3D model - Other - ADT3-6T+-1
click to zoom

ADT3-6T+ Details

  • Manufacturer Part Number:

    ADT3-6T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 3

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    400 MHz

  • Cut-off Frequency-Min:

    0.06 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.11 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    400000 kHz

  • Operating Frequency-Min:

    60 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Power Rating:

    0.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1.732

  • Width:

    5.59 mm

ADT3-6T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the device. The device should be placed on a solid copper island, and the input and output traces should be kept as short as possible and away from other signals.
  • To achieve the best possible noise figure and gain flatness, ensure that the device is properly biased, and the input and output impedances are matched to 50 ohms. Also, use a high-quality, low-noise power supply, and keep the device away from other noise sources.
  • The maximum operating temperature range for the ADT3-6T+ is -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of -20°C to +70°C for optimal performance.
  • Yes, but the device's performance may be affected. The ADT3-6T+ is designed to operate in a 50 ohm system, and using it in a non-50 ohm system may result in impedance mismatch, which can lead to reduced gain, increased noise figure, and decreased linearity.
  • The recommended biasing scheme for the ADT3-6T+ is a single positive supply voltage (Vdd) of 12V to 15V, and a negative supply voltage (Vgg) of -5V to -10V. The device also requires a bias current of 100mA to 150mA.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT3-6T+ Overview

Use the download button to access the ADT3-6T+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT3-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
