Part Image

ADT4-6WT+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download ADT4-6WT+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

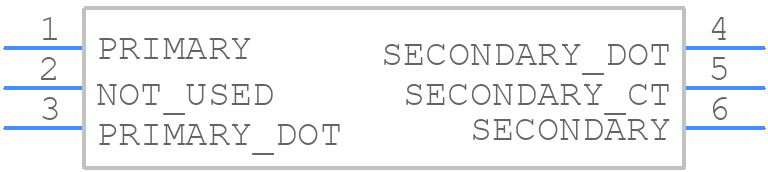

Symbol
ADT4-6WT+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT4-6WT+ - Mini-Circuits PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - ABG08A40M152
click to zoom
3D Models
ADT4-6WT+ - Mini-Circuits - 3D model - SO Transistor Flat Lead - ABG08A40M152
click to zoom

ADT4-6WT+ Details

  • Manufacturer Part Number:

    ADT4-6WT+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.5

  • Additional Feature:

    OHMS RATIO IS 4, HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    600 MHz

  • Cut-off Frequency-Min:

    0.5 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    4.11 mm

  • Insertion Loss:

    3 dB

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    600000 kHz

  • Operating Frequency-Min:

    500 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Power Rating:

    0.5 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    5.59 mm

ADT4-6WT+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The ADT4-6WT+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer to design the matching network.
  • The ADT4-6WT+ can handle up to 2W of continuous power. However, it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • The ADT4-6WT+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and consider using a heat sink or thermal management system to ensure reliable operation in high-temperature environments.
  • Common issues with the ADT4-6WT+ include poor impedance matching, overheating, and damage from excessive power. Use a vector network analyzer to troubleshoot impedance matching issues, and ensure proper thermal management and power handling to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT4-6WT+ Overview

Use the download button to access the ADT4-6WT+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT4-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
