ADT6401SRJZ-RL7 - Analog Devices

Description: Temp Sensor Digital 6-Pin SOT-23 ADT6401SRJZ-RL7, 11 bit Temperature Sensor Switch ±6°C 2.7 → 5.5 V 6-Pin SOT-23

Download ADT6401SRJZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

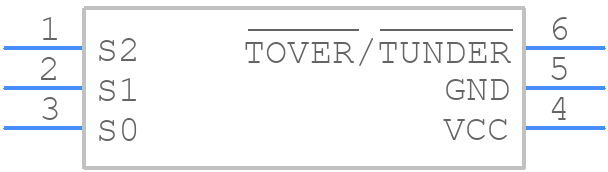

ADT6401SRJZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT6401SRJZ-RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - . 6-Lead Small Outline Transistor Package (SOT-23)
click to zoom
3D Models
ADT6401SRJZ-RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - . 6-Lead Small Outline Transistor Package (SOT-23)
click to zoom

ADT6401SRJZ-RL7 Details

  • Manufacturer Part Number:

    ADT6401SRJZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    6 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.45 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.05 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

ADT6401SRJZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADT6401SRJZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accuracy, it's essential to calibrate the ADT6401SRJZ-RL7 using a high-accuracy temperature reference. Additionally, the device should be operated within its specified temperature range, and the thermal interface material should be chosen carefully to minimize thermal resistance.
  • The recommended power-up sequence for the ADT6401SRJZ-RL7 is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To minimize noise sensitivity, it's recommended to use a low-noise power supply, keep the input traces short and shielded, and use a low-pass filter to filter out high-frequency noise. Additionally, the device should be operated in a noise-free environment.
  • The maximum allowed capacitance for the input pins of the ADT6401SRJZ-RL7 is 10nF. Exceeding this value may affect the device's performance and accuracy.
