ADT6402SRJZ-RL7 - Analog Devices

Description: ANALOG DEVICES - ADT6402SRJZ-RL7 - Temperature Sensor IC, Digital, ± 0.5°C, -55 °C, 125 °C, SOT-23, 6 Pins

Download ADT6402SRJZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

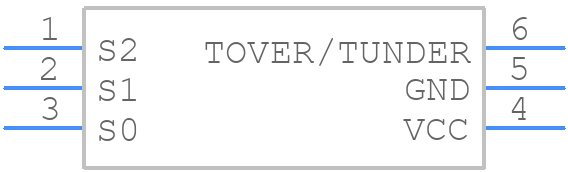

ADT6402SRJZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT6402SRJZ-RL7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6
click to zoom
3D Models
ADT6402SRJZ-RL7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6
click to zoom

ADT6402SRJZ-RL7 Details

  • Manufacturer Part Number:

    ADT6402SRJZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MO-178AB, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    6 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.45 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.05 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

ADT6402SRJZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADT6402SRJZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate temperature measurements, the ADT6402SRJZ-RL7 requires calibration. This can be done by applying a known temperature to the device and adjusting the offset and gain registers accordingly. The device should be calibrated at multiple temperatures to ensure accuracy across the entire operating range.
  • The maximum cable length for the ADT6402SRJZ-RL7's digital interface depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable data transmission.
  • Yes, the ADT6402SRJZ-RL7 is designed to operate in harsh environments and can withstand high vibrations and shocks. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To troubleshoot common issues with the ADT6402SRJZ-RL7, start by checking the power supply and ensuring that the device is properly connected to the PCB. Verify that the device is properly configured and calibrated. Use a logic analyzer or oscilloscope to debug the digital interface and ensure that the device is transmitting data correctly. Consult the datasheet and application notes for troubleshooting guides and FAQs.
