ADT7310TRZ-REEL7 - Analog Devices

Description: Board Mount Temperature Sensors .5 Deg C Accurate 16-Bit Digital SPI

Download ADT7310TRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

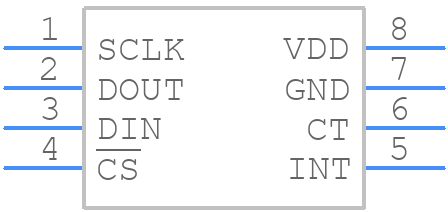

ADT7310TRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7310TRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADT7310TRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADT7310TRZ-REEL7 Details

  • Manufacturer Part Number:

    ADT7310TRZ-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:49.241

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MS-012-A-A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    0.5 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Voltage-Max:

    2.1 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7310TRZ-REEL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good thermal conduction.
  • The ADT7310 has an internal calibration mechanism. However, for high-accuracy applications, external calibration using a precision temperature source and a multimeter is recommended.
  • The maximum allowable thermal resistance for the TIM is 0.2°C-in²/W. A lower thermal resistance ensures better thermal performance.
  • Yes, the ADT7310 is designed to operate in high-vibration environments. However, it's essential to ensure the device is properly secured to the PCB and the PCB is securely attached to the system to prevent mechanical stress.
  • Use a shielded cable for the I²C interface, and ensure the PCB has a solid ground plane. Additionally, follow proper PCB layout and routing guidelines to minimize electromagnetic interference (EMI).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7310TRZ-REEL7 Overview

Use the download button to access the ADT7310TRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT73, or try a keyword search, such as Temperature Sensors
