ADT7310TRZ - Analog Devices

Description: ADT7310TRZ, 16 bit Temperature Sensor ±0.5°C Serial-SPI 2.7 → 3.6 V 8-Pin SOIC

Download ADT7310TRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

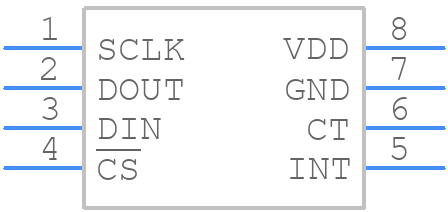

Symbol
ADT7310TRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7310TRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
ADT7310TRZ - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

ADT7310TRZ Details

  • Manufacturer Part Number:

    ADT7310TRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MS-012-A-A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    0.5 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Voltage-Max:

    2.1 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7310TRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADT7310TRZ involves placing the device near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and thermal reliefs.
  • Calibration involves applying a known temperature to the device and measuring the output voltage. The offset and gain can then be calculated and used to correct the temperature readings.
  • The maximum cable length for the ADT7310TRZ's digital output depends on the specific application and noise environment, but a general guideline is to keep the cable length under 10 meters to minimize signal degradation.
  • Yes, the ADT7310TRZ is designed to operate in high-vibration environments, but it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To minimize EMI, use a shielded cable for the digital output, keep the device away from high-frequency sources, and consider adding EMI filters or shielding to the PCB design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7310TRZ Overview

Use the download button to access the ADT7310TRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT73, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
