ADT7311WTRZ-RL7 - Analog Devices

Description: Automotive, ±0.5°C Accurate, 16-Bit Digital SPI Temperature Sensor

Download ADT7311WTRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

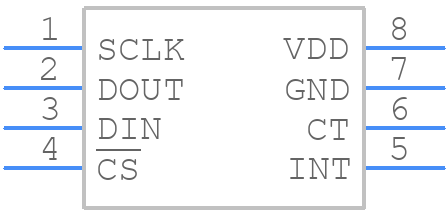

ADT7311WTRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7311WTRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADT7311WTRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

ADT7311WTRZ-RL7 Details

  • Manufacturer Part Number:

    ADT7311WTRZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:49.243

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Voltage-Max:

    1.8 V

  • Output Voltage-Min:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7311WTRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADT7311WTRZ-RL7 involves placing the device near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and thermal reliefs.
  • Calibration involves applying a known temperature to the device and measuring the output voltage. The device can be calibrated using a two-point calibration method, where the output voltage is measured at two known temperatures, typically 0°C and 100°C.
  • The recommended power-up sequence is to apply VDD first, followed by VLOGIC. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • When the device is not powered, the output voltage is undefined. To prevent any potential damage, it is recommended to add a pull-down resistor to the output pin to ensure it is at a defined state when the device is not powered.
  • The maximum cable length for the ADT7311WTRZ-RL7's output signal depends on the specific application and the noise environment. As a general guideline, cable lengths up to 10 meters are acceptable, but longer cables may require additional signal conditioning or buffering.
