ADT7316ARQZ-REEL7 - Analog Devices

Description: Board Mount Temperature Sensors DTS, 12-Bit Quad Voltage Output DAC I.C.

Download ADT7316ARQZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

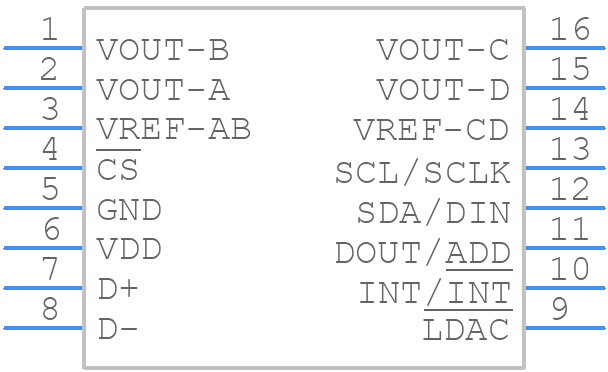

ADT7316ARQZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7316ARQZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 inches
click to zoom
3D Models
ADT7316ARQZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RQ-16 inches
click to zoom

ADT7316ARQZ-REEL7 Details

  • Manufacturer Part Number:

    ADT7316ARQZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    5 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.54 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.001 mA

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER
