- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADT7410TRZ-REEL
- Part Number ADT7410TRZ-REEL
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - (R-8)
- Released Date Jan 11, 2017
- Last Modified Date May 7, 2025 11:33 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADT7410TRZ-REEL Details
-
Manufacturer Part Number:
ADT7410TRZ-REEL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
ADT7410TRZ-REEL Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADT7410TRZ-REEL involves placing the device near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and thermal reliefs.
-
Calibration involves applying a known temperature to the device and measuring the output voltage. The device can be calibrated using a two-point calibration method, where the output voltage is measured at two known temperatures (e.g., 0°C and 100°C).
-
The recommended power-up sequence is to apply VDD first, followed by VLOGIC. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
-
The ADT7410TRZ-REEL outputs a 12-bit digital signal that can be read by a microcontroller. The output data can be handled by using a SPI or I2C interface, depending on the configuration. The microcontroller can then convert the digital output to a temperature reading using the device's datasheet specifications.
-
The thermal response time of the ADT7410TRZ-REEL is approximately 10 seconds, which means it can track temperature changes within 10 seconds. This is suitable for most applications, but may not be suitable for very fast-changing temperature environments.
Trust Checks
Community Provided
System Verified
Community Approved
ADT7410TRZ-REEL Overview

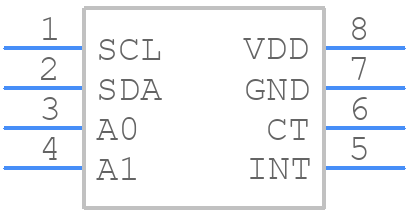

Use the download button to access the ADT7410TRZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT74,
or try a keyword search, such as Temperature Sensors
