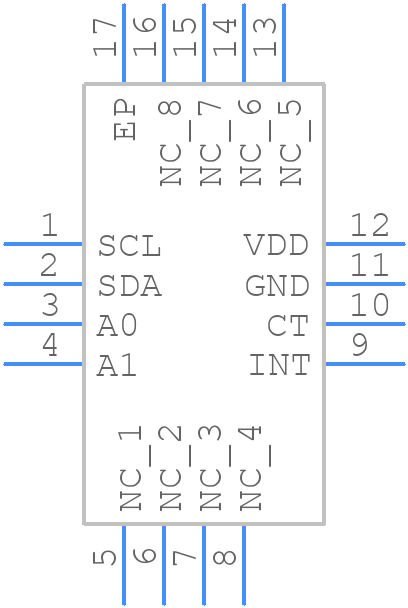

ADT7420UCPZ-R2 - Analog Devices

ADT7420UCPZ-R2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the ADT7420UCPZ-R2 involves placing the device near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and thermal reliefs.
• How do I calibrate the ADT7420UCPZ-R2 for high-accuracy temperature measurements?
  The ADT7420UCPZ-R2 has an internal calibration mechanism, but for high-accuracy applications, external calibration using a precision temperature source and a calibration routine can improve accuracy to ±0.1°C.
• What is the maximum cable length for the I2C interface, and how do I ensure signal integrity?
  The maximum cable length for the I2C interface depends on the clock frequency and capacitance of the bus. As a general rule, keep the cable length below 1 meter. Use twisted pair cables, and consider adding series resistors to the SCL and SDA lines to improve signal integrity.
• How do I handle power-on reset and brown-out detection for the ADT7420UCPZ-R2?
  The ADT7420UCPZ-R2 has a built-in power-on reset circuit, but it's recommended to add an external brown-out detection circuit to ensure the device resets properly during power-up and brown-out conditions.
• What is the recommended decoupling capacitor value and placement for the ADT7420UCPZ-R2?
  Use a 0.1 μF to 1 μF decoupling capacitor placed as close as possible to the VDD pin of the ADT7420UCPZ-R2 to filter out noise and ensure stable operation.
