ADT7460ARQZ-REEL - onsemi

Description: Fan Control, Temp Monitor -40°C ~ 120°C, External Sensor Internal and External Sensor SMBus Output 16-QSOP

Download ADT7460ARQZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

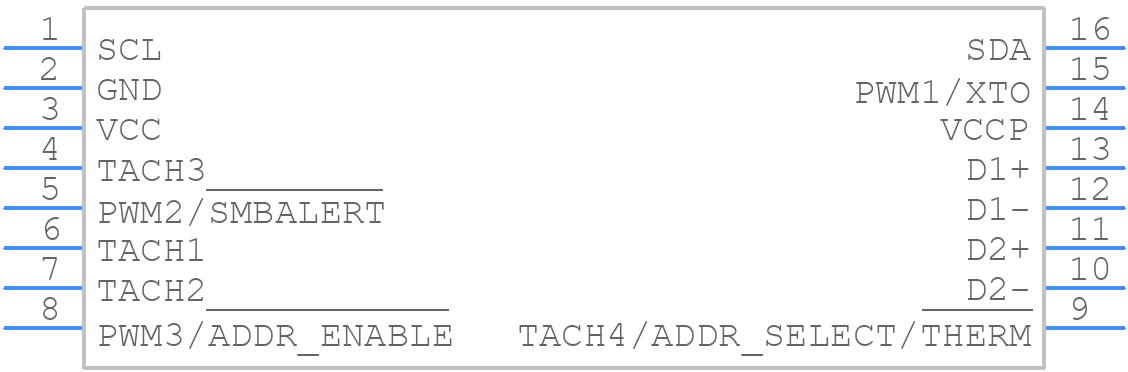

ADT7460ARQZ-REEL - onsemi - PCB symbol
click to zoom
PCB Footprints
ADT7460ARQZ-REEL - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - QSOP16 CASE 492−01 ISSUE A-1
click to zoom
3D Models
ADT7460ARQZ-REEL - onsemi - 3D model - Small Outline Packages - QSOP16 CASE 492−01 ISSUE A-1
click to zoom

ADT7460ARQZ-REEL Details

  • Manufacturer Part Number:

    ADT7460ARQZ-REEL

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    QSOP-16

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    492-01

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADT7460ARQZ-REEL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane, using thermal vias to connect the exposed pad to the ground plane, and keeping the thermal path as short as possible.
  • Calibration involves trimming the temperature sensor's offset and gain using the OTP (One-Time Programmable) memory. The calibration process typically involves measuring the device's temperature reading at multiple points and adjusting the offset and gain accordingly.
  • The maximum allowed thermal resistance between the device and the heat sink depends on the specific application and the desired thermal performance. As a general guideline, a thermal resistance of less than 10°C/W is recommended for optimal performance.
  • Yes, the ADT7460ARQZ-REEL is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The recommended power-up sequence involves applying the power supply voltage (VCC) before the input voltage (VIN). This ensures that the internal voltage regulators are properly enabled and that the device powers up correctly.
