- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADT7461ARMZ
- Part Number ADT7461ARMZ
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MSOP8 CASE846AB-1 ISSUE O
- Released Date Jan 11, 2017
- Last Modified Date May 12, 2025 4:09 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADT7461ARMZ Details
-
Manufacturer Part Number:
ADT7461ARMZ
-
Brand Name:
onsemi
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
Micro 8 lead Surface Mount
-
Package Description:
MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
846A-02
-
Manufacturer:
onsemi
-
YTEOL:
0
ADT7461ARMZ Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the ADT7461ARMZ is -40°C to 125°C.
-
To configure the ADT7461ARMZ for remote temperature sensing, connect the remote diode to the VREMOTE pin and the local diode to the VLOCAL pin. Then, set the REMOTE pin high to enable remote sensing.
-
The ADT7461ARMZ has an accuracy of ±1°C over the temperature range of 0°C to 100°C, and ±2°C over the full operating temperature range of -40°C to 125°C.
-
Yes, the ADT7461ARMZ can monitor multiple temperature zones by connecting multiple diodes to the VREMOTE pin and using the REMOTE pin to select which zone to monitor.
-
The ADT7461ARMZ can be interfaced with a microcontroller using a 2-wire serial interface (I2C-compatible). The microcontroller can read the temperature data from the ADT7461ARMZ by sending the appropriate commands and reading the response.
Trust Checks
System Verified
ADT7461ARMZ Overview

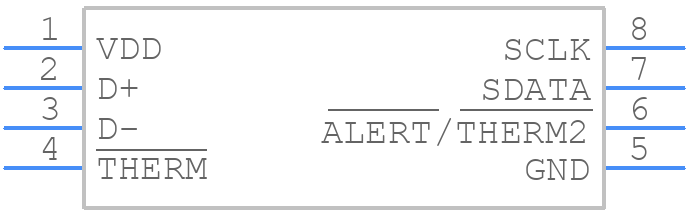

Use the download button to access the ADT7461ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT74,
or try a keyword search, such as Temperature Sensors
