ADT7461ARZ-REEL - onsemi

Description: Temperature Sensor Digital, Local/Remote -40°C ~ 120°C 8 b 8-SOIC,3V ~ 5.5V , -40°C ~ 100°C

Download ADT7461ARZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

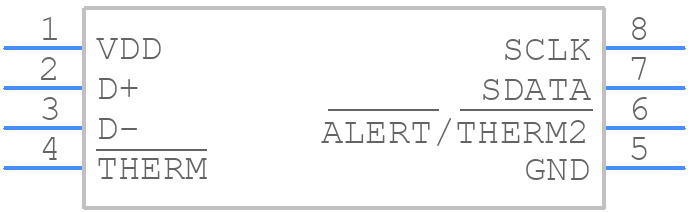

ADT7461ARZ-REEL - onsemi - PCB symbol
click to zoom
PCB Footprints
ADT7461ARZ-REEL - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom
3D Models
ADT7461ARZ-REEL - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom

ADT7461ARZ-REEL Details

  • Manufacturer Part Number:

    ADT7461ARZ-REEL

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.215 mA

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

ADT7461ARZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Calibrate the device using the CAL pin, and ensure that the thermal sensor is in close proximity to the device being monitored. Also, minimize thermal gradients and ensure good thermal coupling between the device and the thermal sensor.
  • The maximum allowed thermal resistance is 10°C/W. Exceeding this value may result in inaccurate temperature measurements.
  • Yes, but ensure that the device is properly secured to the PCB and that the thermal sensor is securely attached to the device being monitored. Vibration can affect the accuracy of temperature measurements.
  • Use proper PCB layout techniques, such as separating analog and digital signals, and use shielding or filtering to minimize EMI effects.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7461ARZ-REEL Overview

Use the download button to access the ADT7461ARZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT74, or try a keyword search, such as Temperature Sensors
