- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADT7463ARQZ
- Part Number ADT7463ARQZ
- Manufacturer onsemi
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - QSOP24 NB CASE 492B−01 ISSUE A
- Released Date Jan 11, 2017
- Last Modified Date May 12, 2025 3:48 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADT7463ARQZ Details
-
Manufacturer Part Number:
ADT7463ARQZ
-
Brand Name:
onsemi
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QSOP24 NB
-
Package Description:
MO-137AE, QSOP-24
-
Pin Count:
24
-
Manufacturer Package Code:
492B-01
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
ADT7463ARQZ Frequently Asked Questions (FAQs)
-
The maximum junction temperature (Tj) for the ADT7463ARQZ is 150°C, as specified in the datasheet. However, it's recommended to operate the device within a safe temperature range to ensure reliability and prevent thermal shutdown.
-
To configure the ADT7463ARQZ for remote temperature sensing, connect the remote diode (e.g., a diode-connected transistor) to the D+ and D- pins. Then, set the RMT pin high to enable remote sensing. The device will then measure the temperature of the remote diode instead of the local temperature.
-
The ADT7463ARQZ has an accuracy of ±1°C (max) over the temperature range of 0°C to 100°C, and ±2°C (max) over the range of -20°C to 150°C. This accuracy is specified in the datasheet and is typical for most applications.
-
Yes, the ADT7463ARQZ is suitable for high-reliability applications due to its high accuracy, low power consumption, and robust design. However, it's essential to follow proper design and layout guidelines, as well as perform thorough testing and validation to ensure the device meets the specific requirements of your application.
-
The ADT7463ARQZ can be interfaced with a microcontroller using the I2C or SMBus interface. The device has a 7-bit address, and the microcontroller can read the temperature data from the device using the I2C or SMBus protocol. Consult the datasheet and the microcontroller's documentation for specific interface details.
Trust Checks
System Verified
ADT7463ARQZ Overview

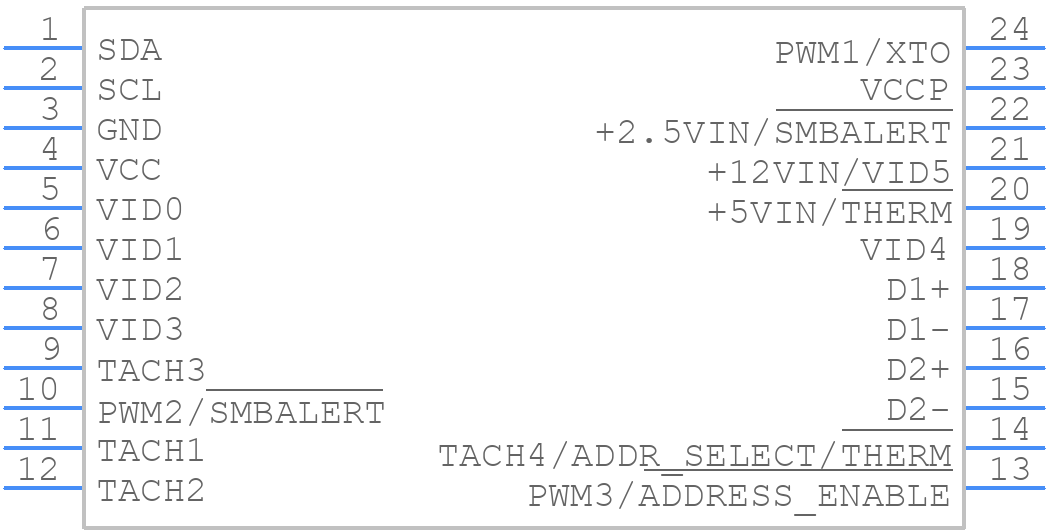

Use the download button to access the ADT7463ARQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT74,
or try a keyword search, such as Power Management Circuits
