ADT7470ARQZ-REEL - Analog Devices

Description: Board Mount Temperature Sensors Blade Server Fan Monitor/Fan Controller

Download ADT7470ARQZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

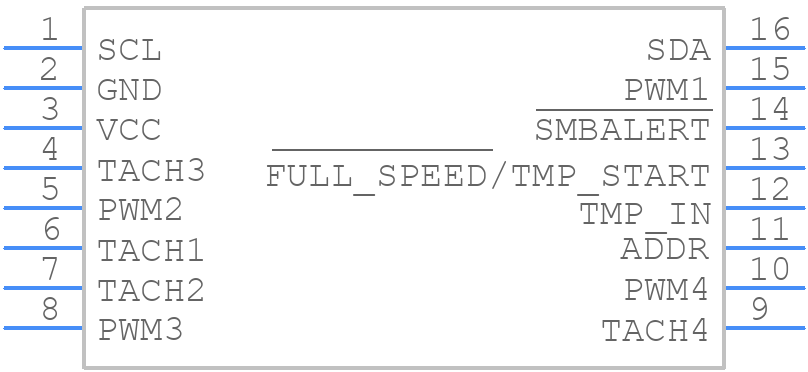

Symbol
ADT7470ARQZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7470ARQZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16 (QSOP)
click to zoom
3D Models
ADT7470ARQZ-REEL - Analog Devices - 3D model - Small Outline Packages - RQ-16 (QSOP)
click to zoom

ADT7470ARQZ-REEL Details

  • Manufacturer Part Number:

    ADT7470ARQZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Body Breadth:

    3.91 mm

  • Body Height:

    1.44 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    7

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7470ARQZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • Calibrate the device using the CAL pin, and ensure that the thermal sensor is in close proximity to the device being measured. Also, minimize thermal gradients and ensure good thermal coupling between the device and the thermal sensor.
  • The maximum allowed thermal resistance is dependent on the specific application, but a general guideline is to keep it below 10°C/W. This can be achieved by using a thermal interface material and ensuring good thermal contact between the device and the thermal sensor.
  • Yes, the ADT7470 can be used with a fan or other cooling system. However, ensure that the thermal sensor is still in close proximity to the device being measured, and that the cooling system does not interfere with the thermal measurement.
  • The recommended power-up sequence is to apply VCC first, followed by the input voltage (VIN). This ensures that the internal voltage regulators are powered up correctly.
