ADT7476AARQZ-R - onsemi

Description: Monitors up to 5 Voltages; Improved TACH and PWM Performance; Controls and Monitors up to Four Fans; High and Low Frequency Fan Drive Signal; One on-chip and Two Remote Temperature Sensors; Extended temp measurement range, up to 191°C; Automatic fan speed control mode controls system cooling based on measured temperature; Enhanced acoustic mode dramatically reduces user perception of changing fan speeds; Thermal Protection Feature via THERM Output; Thermal control circuit via THERM input; 3-wire and 4-wire

Download ADT7476AARQZ-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

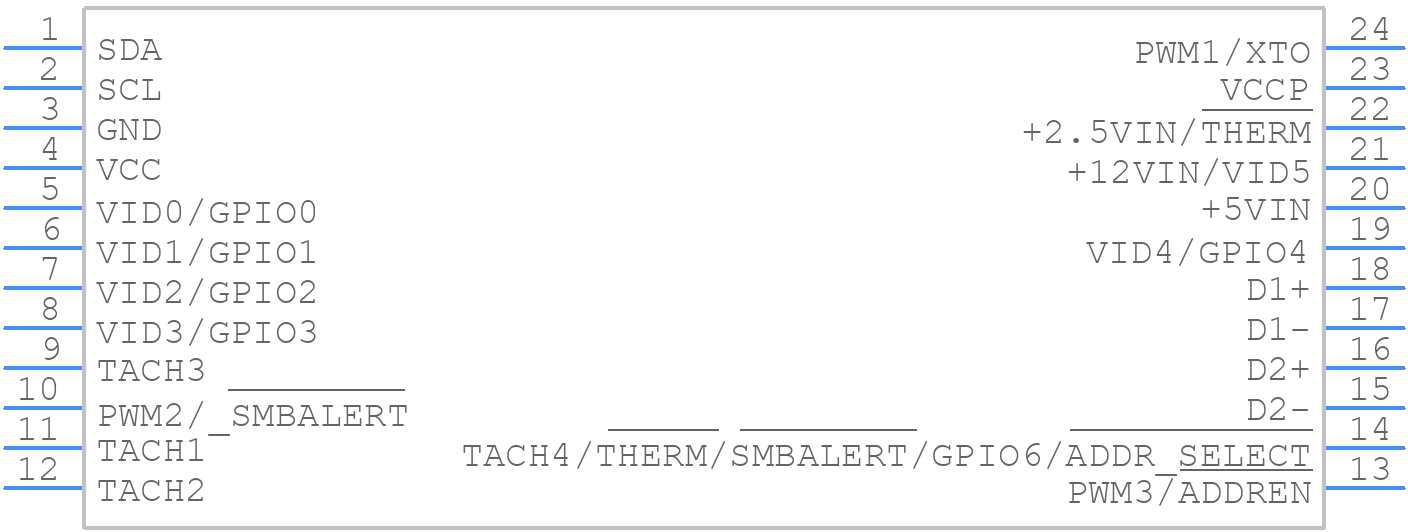

ADT7476AARQZ-R - onsemi - PCB symbol
click to zoom
PCB Footprints
ADT7476AARQZ-R - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - QSOP24 NB
click to zoom
3D Models
ADT7476AARQZ-R - onsemi - 3D model - Small Outline Packages - QSOP24 NB
click to zoom

ADT7476AARQZ-R Details

  • Manufacturer Part Number:

    ADT7476AARQZ-R

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QSOP24 NB

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    492B-01

  • Country Of Origin:

    Malaysia

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.8

  • Accuracy-Max (Cel):

    2.5 Cel

  • Additional Feature:

    HYSTERESIS IS 0.5V

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    8.65 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    24

  • Operating Current-Max:

    3 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

ADT7476AARQZ-R Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the ADT7476AARQZ-R is 150°C.
  • The fan control pins can be configured through the I2C interface. The FANCLK pin is used as a clock input for the fan tachometer, and the FANPWM pin is used to control the fan speed through PWM. The fan speed can be controlled by setting the PWM duty cycle through the I2C interface.
  • The temperature measurements provided by the ADT7476AARQZ-R have an accuracy of ±1°C over the operating temperature range of -20°C to 125°C.
  • Yes, the ADT7476AARQZ-R can be used in a 3.3V system. The device operates from a 2.7V to 5.5V supply voltage, making it compatible with 3.3V systems.
  • The ADT7476AARQZ-R has a built-in overtemperature protection feature. The device can be configured to generate an interrupt when the temperature exceeds a user-defined threshold. The interrupt can be used to trigger a shutdown or alert the system to prevent damage from overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7476AARQZ-R Overview

Use the download button to access the ADT7476AARQZ-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT74, or try a keyword search, such as Other Sensors/Transducers
