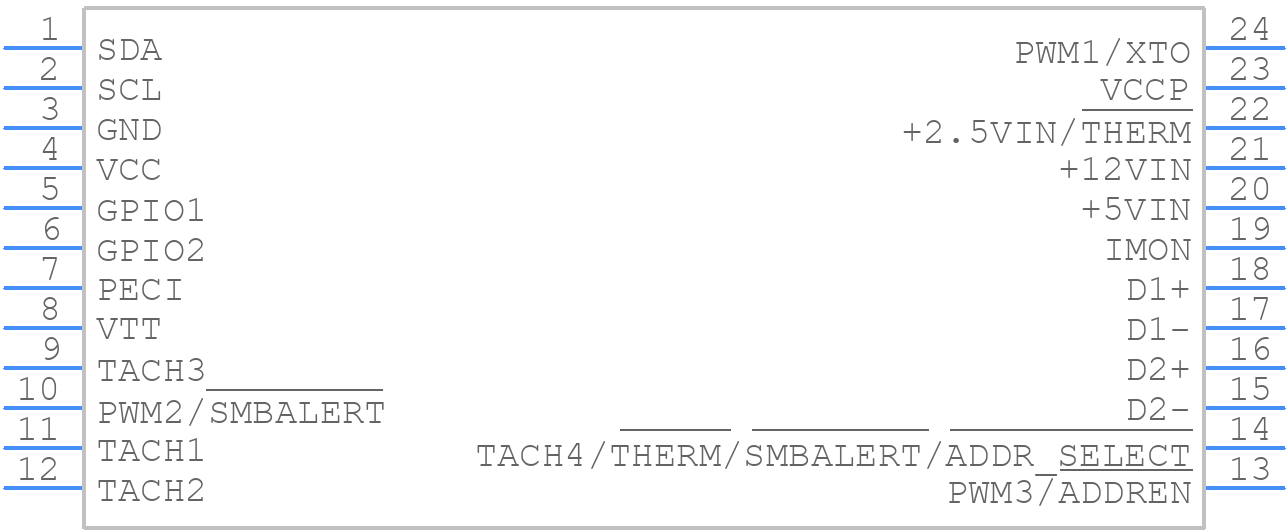

ADT7490ARQZ-REEL - onsemi

ADT7490ARQZ-REEL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
• How do I ensure accurate temperature measurements with the ADT7490?
  Calibrate the device using the on-chip calibration registers. Ensure that the device is in a thermally stable environment and avoid self-heating effects by minimizing current consumption.
• What is the maximum cable length for the I2C interface?
  The maximum cable length for the I2C interface is 10 meters, but it depends on the capacitance of the cable and the system's noise environment. Use a repeater or a buffer if longer cable lengths are required.
• Can I use the ADT7490 with a 3.3V supply voltage?
  Yes, the ADT7490 can operate with a 3.3V supply voltage, but the output voltage range will be limited to 0.5V to 2.5V. Consult the datasheet for specific operating conditions.
• How do I handle the thermal shutdown feature?
  The thermal shutdown feature is enabled by default. If the die temperature exceeds 150°C, the device will shut down. To handle this, implement a thermal monitoring system to detect and respond to thermal shutdown events.
