- Part Number ADT75BRMZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RM-8 (MSOP)
- Released Date Dec 29, 2020
- Last Modified Date Nov 18, 2025 6:43 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADT75BRMZ Details
-
Manufacturer Part Number:
ADT75BRMZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LEAD FREE, MO-187AA, MSOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
RM-8
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
ADT75BRMZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADT75BRMZ involves placing the device near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and thermal reliefs.
-
Calibration involves applying a known temperature to the device and measuring the output voltage. The device can be calibrated using a two-point calibration method, where the output voltage is measured at two known temperatures (e.g., 0°C and 100°C).
-
The recommended power-up sequence is to apply VCC first, followed by a delay of at least 10 ms, and then apply the logic input signals. This ensures that the internal voltage regulator is fully powered up before the logic inputs are applied.
-
To minimize EMI, use a shielded cable for the sensor output, keep the sensor and cable away from high-frequency sources, and use a low-pass filter or ferrite bead to filter out high-frequency noise.
-
The maximum cable length depends on the output signal frequency and the noise environment. As a general guideline, keep the cable length as short as possible (less than 1 meter) to minimize signal degradation and noise pickup.
Trust Checks
Community Provided
System Verified
Community Approved
ADT75BRMZ Overview

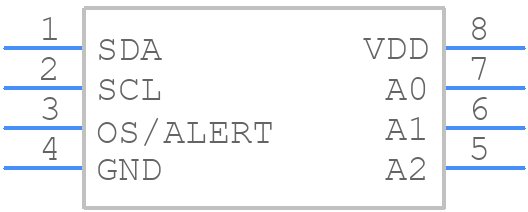

Use the download button to access the ADT75BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT75,
or try a keyword search, such as Temperature Sensors
