ADTL084ARZ-REEL7 - Analog Devices

Description: Op Amp Quad Precision Amplifier ±18V/36V 14-Pin SOIC N T/R

Download ADTL084ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

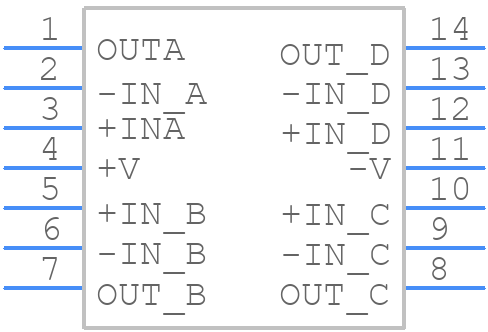

ADTL084ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADTL084ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
ADTL084ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

ADTL084ARZ-REEL7 Details

  • Manufacturer Part Number:

    ADTL084ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AB, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.0001 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.005 µA

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    20 V/us

  • Supply Current-Max:

    8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    50000

  • Wideband:

    YES

  • Width:

    3.9 mm

ADTL084ARZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow Analog Devices' PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be connected to a heat sink or a thermal plane on the PCB.
  • To ensure EMC and reduce EMI, use proper shielding, grounding, and filtering techniques. Keep sensitive analog circuits away from high-frequency digital circuits, and use a multi-layer PCB with a solid ground plane. Additionally, consider using EMI filters or common-mode chokes on the input and output lines.
  • The ADTL084ARZ-REEL7 meets the Automotive Electronics Council (AEC) Q100 Grade 1 standard for automotive applications, and the device is qualified for industrial and commercial applications. Reliability metrics include a mean time between failures (MTBF) of >10 million hours, and a failure rate of <10 FIT (failures per billion device-hours).
  • To troubleshoot issues, use a systematic approach to identify the problem, starting with the simplest possible causes. Check the power supply, input signals, and output loads. Use oscilloscopes and logic analyzers to visualize signals and identify anomalies. Common pitfalls to avoid include incorrect pin connections, inadequate power supply decoupling, and insufficient thermal management.
  • The ADTL084ARZ-REEL7 operates over a temperature range of -40°C to +125°C, with a storage temperature range of -65°C to +150°C. The device is designed to withstand humidity and moisture, but it's essential to follow proper handling and storage procedures to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADTL084ARZ-REEL7 Overview

Use the download button to access the ADTL084ARZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADTL0, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
