ADTL1-12+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download ADTL1-12+ Model

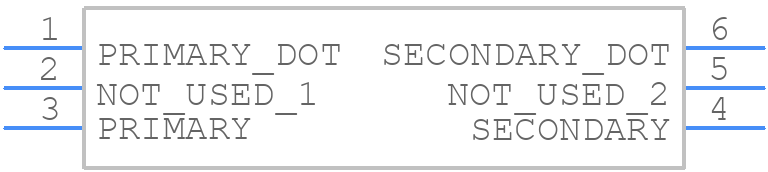

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADTL1-12+ - Mini-Circuits PCB footprint - Other - Other - ADTL1-12+-1
click to zoom
3D Models
ADTL1-12+ - Mini-Circuits  - 3D model - Other - ADTL1-12+-1
click to zoom

ADTL1-12+ Details

  • Manufacturer Part Number:

    ADTL1-12+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    OHMS RATIO IS 1

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    1200 MHz

  • Cut-off Frequency-Min:

    20 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    2 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    1200000 kHz

  • Operating Frequency-Min:

    20000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    5.59 mm

ADTL1-12+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides guidance on impedance matching in their application notes. You can also use simulation tools like ADS or AWR to optimize the matching network.
  • The maximum power handling of the ADTL1-12+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power. Exceeding this limit may cause damage or affect reliability.
  • Yes, the ADTL1-12+ can be used in a push-pull configuration. However, it's essential to ensure that the devices are properly matched and biased to avoid uneven current sharing and potential reliability issues.
  • The thermal resistance of the ADTL1-12+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the thermal resistance is approximately 25°C/W. Proper thermal management is crucial to ensure reliable operation.
