ADTT1-6+ footprint, schematic symbol and 3D model by Mini-Circuits

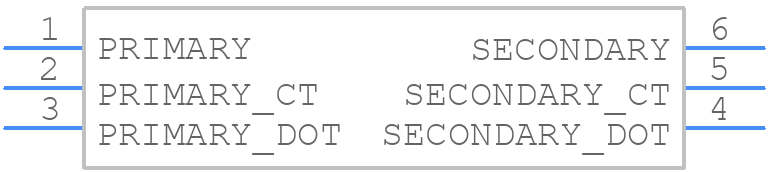

Symbol

click to zoom

PCB Footprints

ADTT1-6+ - Mini-Circuits PCB footprint - Other - Other - ADTT1-6+-2

click to zoom

3D Models

ADTT1-6+ - Mini-Circuits - 3D model - Other - ADTT1-6+-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADTT1-6+
Part Number ADTT1-6+
Manufacturer Mini-Circuits
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - ADTT1-6+-2
Released Date Aug 4, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADTT1-6+ Details

Manufacturer Part Number:
ADTT1-6+
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
7
Additional Feature:
OHMS RATIO IS 1
Application:
MATCHING
Cut-off Frequency-Max:
100 MHz
Cut-off Frequency-Min:
0.015 MHz
DC Unbalance Current-Max:
30 mA
Height:
5.23 mm
Insertion Loss:
3 dB
JESD-609 Code:
e3
Length:
7.87 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
1
Operating Frequency-Max:
100000 kHz
Operating Frequency-Min:
15 kHz
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-20 °C
Packing Method:
TAPE & REEL
Power Rating:
0.25 W
Surface Mount:
YES
Terminal Finish:
Tin (Sn) - with Nickel (Ni) barrier
Transformer Type:
RF TRANSFORMER
Turns Ratio (Np:Ns):
1:1
Width:
5.59 mm

ADTT1-6+ Frequently Asked Questions (FAQs)

The maximum operating temperature range for the ADTT1-6+ is -40°C to +85°C.
Yes, the ADTT1-6+ is designed to operate in humid environments, but it's recommended to follow proper storage and handling procedures to prevent moisture damage.
Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-impedance path to ground for the device's ground pins. A good grounding scheme is essential for optimal performance.
The ADTT1-6+ requires a bias voltage of +5V to +12V, and a bias current of 10mA to 50mA. Ensure the bias voltage is well-regulated and decoupled to prevent noise and oscillations.
The ADTT1-6+ can handle input power up to +20dBm (100mW) without damage. However, it's recommended to operate within the specified input power range for optimal performance and reliability.
