ADUC7039BCP6Z footprint, schematic symbol and 3D model by Analog Devices

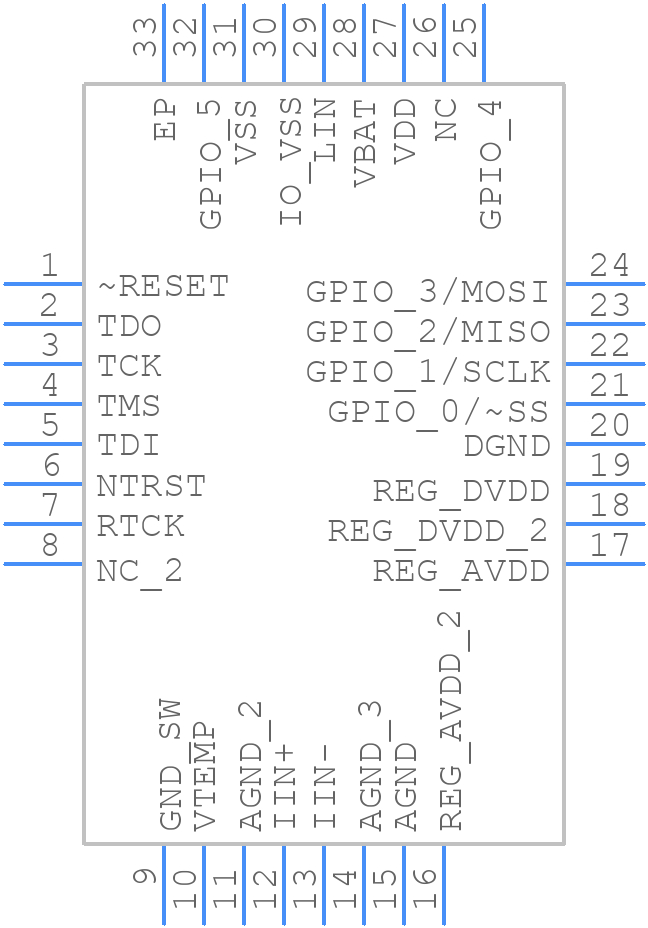

Symbol

click to zoom

PCB Footprints

ADUC7039BCP6Z - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-33N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADUC7039BCP6Z
Part Number ADUC7039BCP6Z
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFN50P600X600X100-33N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADUC7039BCP6Z Details

Manufacturer Part Number:
ADUC7039BCP6Z
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFN
Package Description:
6 X 6 MM, ROHS COMPLIANT, MO-220VJJD, LFCSP-32
Pin Count:
32
Manufacturer Package Code:
CP-32-15
Country Of Origin:
Philippines
ECCN Code:
3A991.A.2
HTS Code:
8542.31.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
115 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.24SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
20 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
3.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
6 mm

ADUC7039BCP6Z Frequently Asked Questions (FAQs)

Analog Devices provides a recommended PCB layout guide for the ADUC7039BCP6Z in the ADuC7039 Evaluation Board documentation, which can be found on the Analog Devices website. This guide provides detailed information on component placement, routing, and thermal management to ensure optimal performance.
The ADUC7039BCP6Z can be programmed using the Analog Devices ADuC7039 Evaluation Board and the ADuC7039 Software Development Kit (SDK). The SDK provides a range of tools and documentation to help developers create and download firmware to the device.
The ADUC7039BCP6Z has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
Yes, the ADUC7039BCP6Z is designed to meet the requirements of safety-critical applications, such as those found in the automotive and industrial sectors. It has been certified to meet various safety standards, including IEC 61508 and ISO 26262.
The power consumption of the ADUC7039BCP6Z varies depending on the operating mode and frequency. In active mode, the device consumes around 100 mW at 1 MHz, while in sleep mode, it consumes around 10 μW.
