ADUC847BSZ32-3 - Analog Devices

Description: Analog Devices ADUC847BSZ32-3, 8bit 8052 Microcontroller, 12.58MHz, 4 kB, 62 kB Flash, 52-Pin MQFP

Download ADUC847BSZ32-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADUC847BSZ32-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

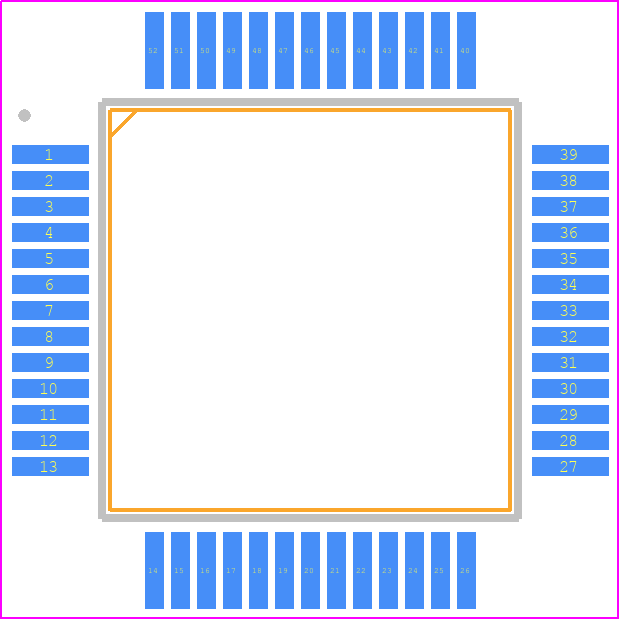

ADUC847BSZ32-3 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (S-52-2-1
click to zoom
3D Models
ADUC847BSZ32-3 - Analog Devices - 3D model - Quad Flat Packages - (S-52-2-1
click to zoom

ADUC847BSZ32-3 Details

  • Manufacturer Part Number:

    ADUC847BSZ32-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    14 X 14 MM, LEAD FREE, PLASTIC, MO-112-AC-1, MQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    S-52-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    8

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    32

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.45 mm

  • Speed:

    12.58 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ADUC847BSZ32-3 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-1120, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADUC847BSZ32-3 requires a one-time calibration process to ensure accurate voltage and current measurements. This involves applying known voltage and current inputs and adjusting the internal calibration registers accordingly. Refer to the device's calibration procedure in the datasheet or application notes for detailed instructions.
  • The ADUC847BSZ32-3 is rated for operation between -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the ADUC847BSZ32-3 is designed to operate in high-vibration environments. However, it's essential to ensure proper PCB mounting and mechanical design to prevent damage to the device or surrounding components. Refer to Analog Devices' application notes for guidance on designing for high-vibration environments.
  • Analog Devices provides a troubleshooting guide in their application note AN-1131, which covers common issues and their solutions. Additionally, engineers can use the device's built-in diagnostic features, such as the internal ADC test mode, to identify and resolve issues.
