ADUCM331WFSBCPZ-RL - Analog Devices

Description: MCU 32-bit ARM Cortex M3 RISC 128KB Flash Automotive 32-Pin LFCSP EP T/R

Download ADUCM331WFSBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

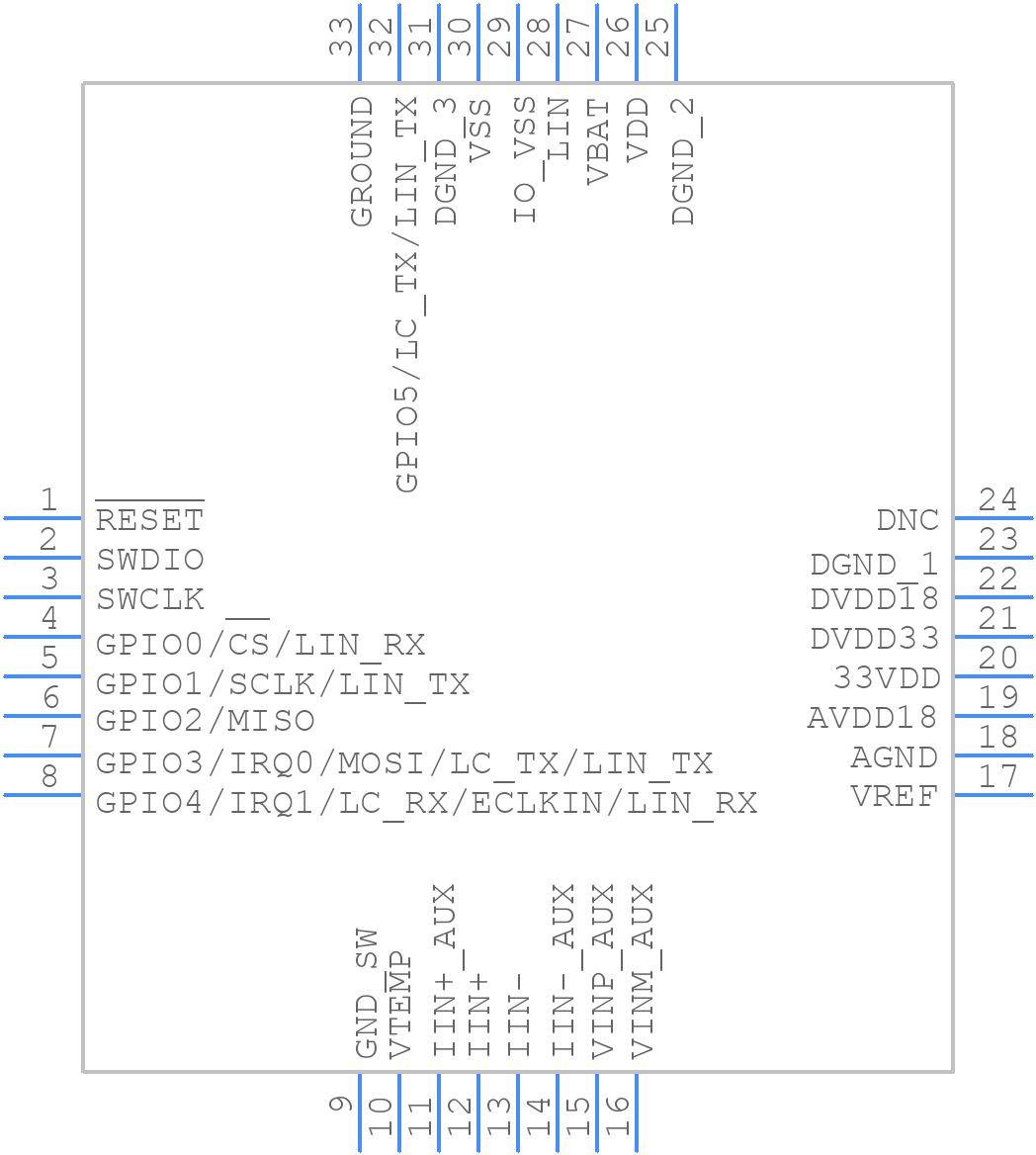

ADUCM331WFSBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUCM331WFSBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-15)-++
click to zoom
3D Models
ADUCM331WFSBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-15)-++
click to zoom

ADUCM331WFSBCPZ-RL Details

  • Manufacturer Part Number:

    ADUCM331WFSBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-12-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0.4

  • Bus Compatibility:

    SPI

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    6 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

ADUCM331WFSBCPZ-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADUCM331 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance.
  • The ADUCM331 is a highly configurable device, and configuration depends on the specific sensor type and application. Analog Devices provides application notes and software tools, such as the ADUCM331 Evaluation Software, to help configure the device for various use cases.
  • The ADUCM331 is rated for operation from -40°C to +125°C, but the actual operating temperature range may vary depending on the specific application and environmental conditions.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the ADUCM331 is properly grounded and decoupled. Analog Devices also provides EMC guidelines in the ADUCM331 datasheet and application notes.
  • The typical power consumption of the ADUCM331 varies depending on the operating mode and configuration. However, in typical applications, the device consumes around 10-20 mA of current from a 3.3V supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUCM331WFSBCPZ-RL Overview

Use the download button to access the ADUCM331WFSBCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUCM, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
