ADUM1241ARZ - Analog Devices

Description: Micropower, Dual-Channel Digital Isolators, Default High (1/1 Channel Directionality)

Download ADUM1241ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

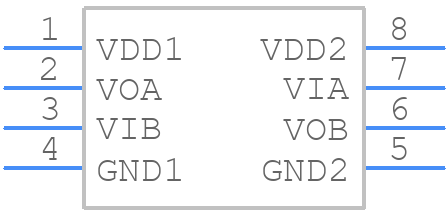

ADUM1241ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM1241ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADUM1241ARZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADUM1241ARZ Details

  • Manufacturer Part Number:

    ADUM1241ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

ADUM1241ARZ Frequently Asked Questions (FAQs)

  • The ADUM1241ARZ can support data rates up to 100 Mbps, making it suitable for high-speed digital isolators.
  • The ADUM1241ARZ has a high common-mode transient immunity of 50 kV/μs, making it suitable for applications with high electromagnetic interference (EMI).
  • The typical propagation delay of the ADUM1241ARZ is around 10 ns, making it suitable for high-speed digital isolation applications.
  • Yes, the ADUM1241ARZ is rated for operation from -40°C to +125°C, making it suitable for use in high-temperature environments.
  • The ADUM1241ARZ has a high isolation voltage of 2500 Vrms, making it suitable for applications that require high isolation voltage.
