ADUM1245ARSZ - Analog Devices

Description: Analog Devices ADUM1245ARSZ PCB SMT 2-channel Digital Isolator, 3750 Vrms, 20-Pin SSOP

Download ADUM1245ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

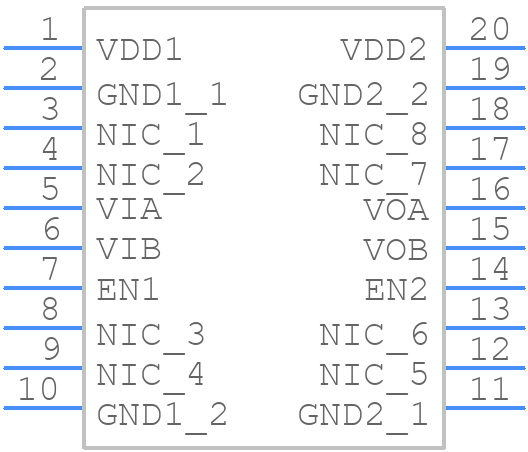

ADUM1245ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM1245ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADUM1245ARSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADUM1245ARSZ Details

  • Manufacturer Part Number:

    ADUM1245ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

ADUM1245ARSZ Frequently Asked Questions (FAQs)

  • The ADUM1245ARSZ can support data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications.
  • The ADUM1245ARSZ has a built-in power-up and power-down sequencing circuit that ensures the output is in a high-impedance state during power-up and power-down, preventing unwanted output transitions.
  • The typical propagation delay of the ADUM1245ARSZ is around 10 ns, making it suitable for high-speed digital isolation applications where timing is critical.
  • Yes, the ADUM1245ARSZ is rated for operation up to 125°C, making it suitable for high-temperature applications such as industrial control systems and automotive systems.
  • The ADUM1245ARSZ has a high common-mode transient immunity of 50 kV/μs, making it suitable for applications where high-voltage transients are present.
