ADUM1300ARW-RL - Analog Devices

Description: General Purpose Digital Isolator 2500Vrms 3 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)

Download ADUM1300ARW-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

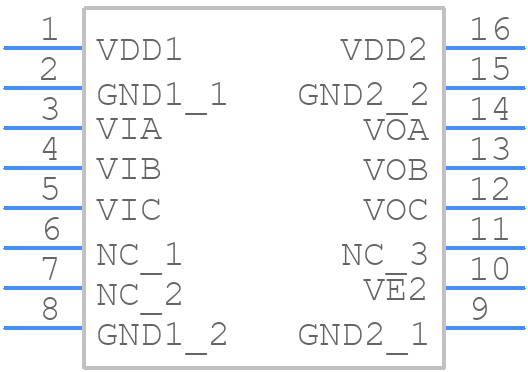

ADUM1300ARW-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM1300ARW-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 300 MIL_2023-8
click to zoom
3D Models
ADUM1300ARW-RL - Analog Devices - 3D model - Small Outline Packages - SOIC 300 MIL_2023-8
click to zoom

ADUM1300ARW-RL Details

  • Manufacturer Part Number:

    ADUM1300ARW-RL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Interface IC Type:

    INTERFACE CIRCUIT

  • Interface Standard:

    EIA-232; EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADUM1300ARW-RL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM1300ARW-RL is -40°C to +105°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • It is recommended to use a 0.1 μF ceramic capacitor in parallel with a 10 μF electrolytic capacitor for power supply decoupling. This helps to reduce noise and ensure stable operation.
  • Yes, the ADUM1300ARW-RL can be used in a multi-channel isolation application. However, it is essential to ensure that each channel is properly isolated and that the power supplies are separated to maintain isolation between channels.
  • To troubleshoot issues with the ADUM1300ARW-RL, start by verifying the power supply connections and ensuring that the input signals are within the specified range. Check the output voltage levels and verify that the output is not shorted to ground or VCC. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM1300ARW-RL Overview

Use the download button to access the ADUM1300ARW-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM1, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
