ADUM130D0BRWZ - Analog Devices

Description: Analog Devices ADUM130D0BRWZ PCB SMT 3-channel Digital Isolator, 3750 Vrms, 16-Pin SOIC

Download ADUM130D0BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

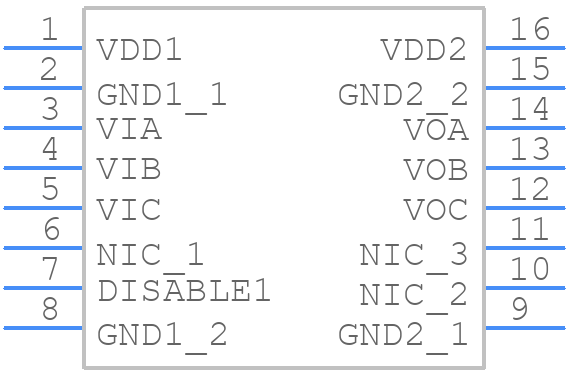

ADUM130D0BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM130D0BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM130D0BRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM130D0BRWZ Details

  • Manufacturer Part Number:

    ADUM130D0BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM130D0BRWZ Frequently Asked Questions (FAQs)

  • The ADUM130D0BRWZ can operate over a temperature range of -40°C to +125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM130D0BRWZ is to power up the VDD1 and VDD2 supplies simultaneously, followed by the logic inputs. This ensures that the internal circuitry is properly initialized and that the device operates correctly.
  • Yes, the ADUM130D0BRWZ can be used in a multi-channel isolation application. However, it is essential to ensure that each channel is properly isolated from the others, and that the power supplies and grounds are properly separated to maintain isolation.
  • To troubleshoot issues with the ADUM130D0BRWZ, start by verifying the power supply voltages, checking for proper connections and soldering, and ensuring that the device is properly configured. Use a logic analyzer or oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
